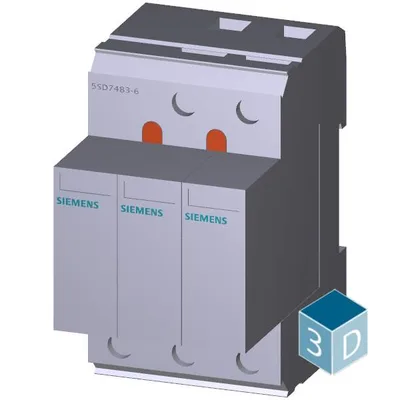

Siemens 5SD7483-6

surge arrester type, 1/type 2, Uc 1050 V DC, Imax 40 kA short-circuit strength 80 A, 2+V circuit, for isolated and grounded PV systems

SiemensMFR # 5SD7483-6SKU # YLSAMYWHULAESEV

standardEN 50539-11

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

Have questions?Chat on WhatsApp

About This Product

surge arrester type, 1/type 2, Uc 1050 V DC, Imax 40 kA short-circuit strength 80 A, 2+V circuit, for isolated and grounded PV systems

Siemens 5SD7483-6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardEN 50539-11

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productSurge arrester

design of poleOther

designation of the protective paths(L+)-(L-)

accessories3 x 5SD7498-3

fastening methodTH35 DIN rail

material of the enclosurePA 6.6 / PBT

size of surge arrester3 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

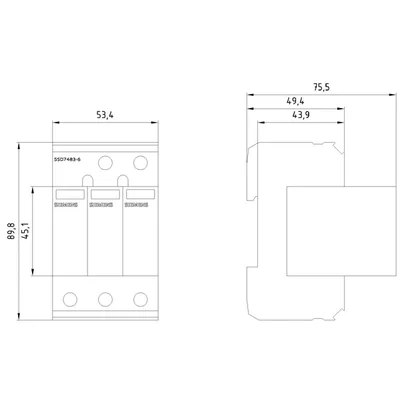

width53.4 mm

height90 mm

depth71.5 mm

Electrical data

type of distribution systemPV

at DC1 000 V

at DC maximum1 000 V

apparent power consumption maximum25 mVA

discharge current at (8/20) µs15 kA

total discharge current at (8/20) µs40 kA

discharge current 1 phase at (8/20) µs maximum40 kA

lightning current peak value at (10/350) µs5 kA

short-circuit rating (SCCR) at 264 V0.3 kA

protection level3.5 kV

maximum3.5 kV

between L and PE maximum3.5 kV

at rated value of discharge current maximum3.5 kV

at 10 kA maximum3.2 kV

at 5 kA maximum2.9 kV

at 2 kA maximum2.6 kV

Response time25 ns

fuse protection type at V-shaped connectionNot required

fuse protection type for T-connectorNot required

MPP voltage1 050 V

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque4.3 ... 4.7 N·m

for finely stranded conductor1.5 ... 25 mm²

for rigid conductor1.5 ... 35 mm²

finely stranded1.5 ... 25 mm²

AWG number as coded connectable conductor cross section15 ... 2

design of the thread of the connection screwM5

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactNo

NEMA/UL - Data

type of distribution systemPV

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V0
