How can I get a price quote for Siemens 5SD7483-0KK02?

You can request a fast quote for Siemens 5SD7483-0KK02 from Yılsa Engineering. Reference part number YLSXK3BMVSXHEA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SD7483-0KK02 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SD7483-0KK02 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SD7483-0KK02?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

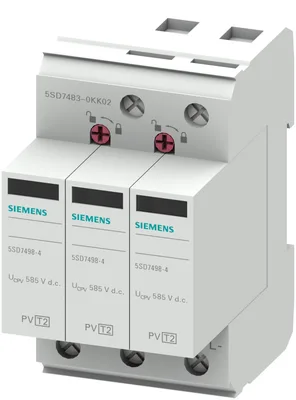

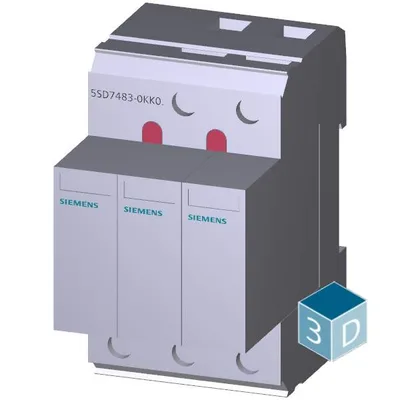

Siemens 5SD7483-0KK02

surge arrester, T2, Uc 1000 V DC, Imax 40 kA short-circuit strength 2000 A, 2+V circuit, for isolated and grounded PV systems

SiemensMFR # 5SD7483-0KK02SKU # YLSXK3BMVSXHEA

standardIEC 61643-31: 2022

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productSurge arrester

Have questions?Chat on WhatsApp

About This Product

surge arrester, T2, Uc 1000 V DC, Imax 40 kA short-circuit strength 2000 A, 2+V circuit, for isolated and grounded PV systems

Siemens 5SD7483-0KK02

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-31: 2022

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productSurge arrester

design of pole2

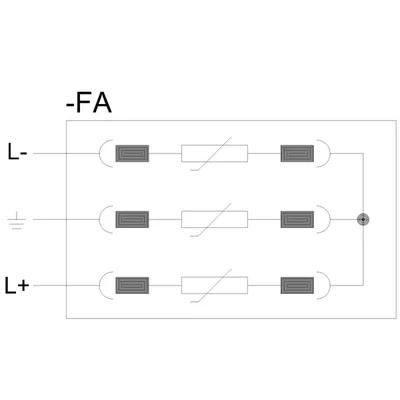

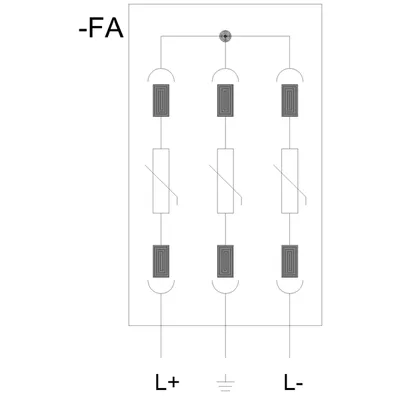

designation of the protective paths(L+)-(L-)

fastening methodTH35 DIN rail

material of the enclosurePA 6.6

size of surge arrester3 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

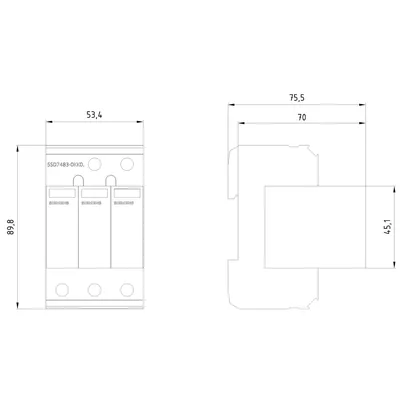

width53 mm

height90 mm

depth66 mm

Electrical data

type of distribution systemPV

at DC1 000 V

at DC maximum1 000 V

discharge current at (8/20) µs15 kA

discharge current 1 phase at (8/20) µs maximum40 kA

protection level3.7 kV

maximum3.7 kV

at rated value of discharge current maximum3.7 kV

at 10 kA maximum3.7 kV

at 5 kA maximum3.1 kV

Response time25 ns

MPP voltage1 170 V

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque3 ... 4.5 N·m

for finely stranded conductor1.5 ... 25 mm²

for rigid conductor1.5 ... 35 mm²

finely stranded1.5 ... 25 mm²

AWG number as coded connectable conductor cross section10 ... 2

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactNo

NEMA/UL - Data

type of distribution systemPV

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V0
