How can I get a price quote for Siemens 5SD7463-0?

You can request a fast quote for Siemens 5SD7463-0 from Yılsa Engineering. Reference part number YLSHWYSDQAZJHH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SD7463-0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SD7463-0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SD7463-0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

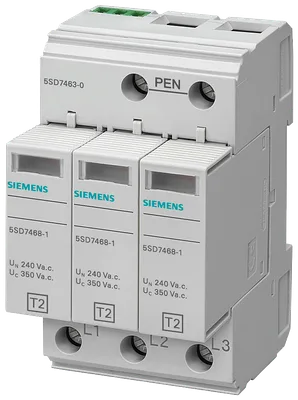

Siemens 5SD7463-0

surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 3-pole, 3+0 circuit for TNC systems,

SiemensMFR # 5SD7463-0SKU # YLSHWYSDQAZJHH

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

Have questions?Chat on WhatsApp

About This Product

surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 3-pole, 3+0 circuit for TNC systems,

Siemens 5SD7463-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productSurge arrester

design of pole3

designation of the protective pathsL-PEN

accessories3 x 5SD7468-1

fastening methodTH35 DIN rail

material of the enclosurePA 6.6 / PBT

size of surge arrester3 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

shock acceleration25 gn

vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

width53.4 mm

height90 mm

depth71.5 mm

Electrical data

type of distribution systemTN-C

at AC230 V

value range of the operating frequency50 / 60 Hz

at AC maximum350 V

apparent power consumption maximum450 mVA

discharge current at (8/20) µs20 kA

discharge current 1 phase at (8/20) µs maximum40 kA

short-circuit rating (SCCR) at 264 V25 kA

protection level1.4 kV

maximum1.5 kV

at rated value of discharge current maximum1.5 kV

at 10 kA maximum1.3 kV

at 5 kA maximum1.2 kV

at 3 kA maximum1.1 kV

Response time25 ns

adjustable response factor of tripping current1.6

fuse protection type at V-shaped connection80 A AC (gG)

fuse protection type for T-connector125 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque4.3 ... 4.7 N·m

for finely stranded conductor1.5 ... 25 mm²

for rigid conductor1.5 ... 35 mm²

finely stranded0.5 ... 25 mm²

AWG number as coded connectable conductor cross section15 ... 2

design of the thread of the connection screwM5

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactNo

NEMA/UL - Data

type of distribution systemTN-C

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V-0
