How can I get a price quote for Siemens 5SD7424-3?

You can request a fast quote for Siemens 5SD7424-3 from Yılsa Engineering. Reference part number YLSMAWJGHXQFVC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SD7424-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SD7424-3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SD7424-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

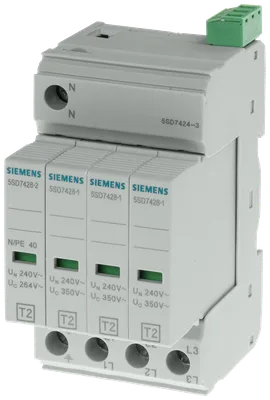

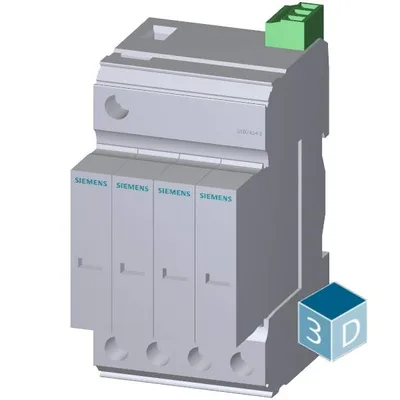

Siemens 5SD7424-3

surge arrester type, 2, Un 240/400 V, Uc 350/264 V AC, protective modules, plug-in, 3+1 circuit (TN-S, TT), width 49.2 mm

SiemensMFR # 5SD7424-3SKU # YLSMAWJGHXQFVC

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

Have questions?Chat on WhatsApp

About This Product

surge arrester type, 2, Un 240/400 V, Uc 350/264 V AC, protective modules, plug-in, 3+1 circuit (TN-S, TT), width 49.2 mm

Siemens 5SD7424-3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productSurge arrester

design of pole3+N/PE

designation of the protective pathsL-N, N-PE

accessories3 x 5SD7428-1 + 1 x 5SD7428-2

fastening methodTH35 DIN rail

material of the enclosurePA 6.6 / PBT

size of surge arrester2.7 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

shock acceleration30 gn

vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

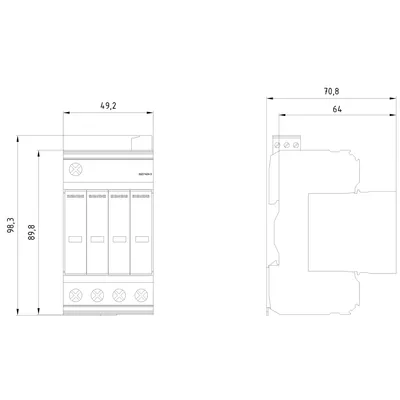

width49.2 mm

height98 mm

depth71.5 mm

Electrical data

type of distribution systemTN-S, TT

at AC230 V

value range of the operating frequency50 / 60 Hz

at AC maximum350 V

between N and PE at AC maximum264 V

between L and PE at AC maximum350 V

between L and (PE)N at AC maximum350 V

between L and (PE)N at (8/20) µs20 kA

between L and N at (8/20) µs40 kA

between L and PE at (8/20) µs40 kA

between L and PE at (8/20) µs20 kA

between N and PE at (8/20) µs80 kA

between N and PE at (8/20) µs40 kA

between N and PE100 A (264 V a.c.)

short-circuit rating (SCCR) at 264 V25 kA

between L and N maximum1.5 kV

between L and PE maximum1.9 kV

between N and PE maximum1.5 kV

— at rated value of discharge current maximum1.5 kV

— at 10 kA maximum1.3 kV

— at 5 kA maximum1.2 kV

— at 4 kA maximum1.1 kV

— at 2 kA maximum1 kV

— at rated value of discharge current maximum0.7 kV

— at 10 kA maximum0.7 kV

— at 5 kA maximum0.7 kV

— at 4 kA maximum0.7 kV

— at 2 kA maximum0.7 kV

between N and PE1.5 kV

response time between L and (PE)N25 ns

response time between N and PE100 ns

adjustable response factor of tripping current1.6

fuse protection type at V-shaped connection40 A AC (gG)

fuse protection type for T-connector315 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque4.3 ... 4.7 N·m

for finely stranded conductor2.5 ... 16 mm²

for rigid conductor2.5 ... 25 mm²

AWG number as coded connectable conductor cross section12 ... 4

design of the thread of the connection screwM5

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes

switching function of the remote signaling contactsPDT contact

operating voltage of the remote signaling contacts at AC5 ... 250 V

operational current of the remote signaling contacts at AC5 mA ... 1 A

connection type of remote signaling contactM2

connectable conductor cross-section for remote signaling contacts for rigid conductor0.14 ... 1.5 mm²

connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.14 ... 1.5 mm²

AWG number as coded connectable conductor cross section for remote signaling contacts28 ... 16

tightening torque for remote signaling contacts0.25 N·m

NEMA/UL - Data

type of distribution systemTN-S, TT

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V0
