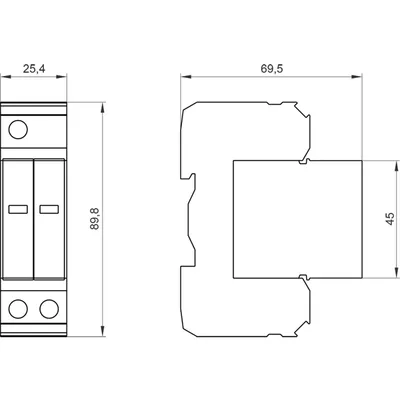

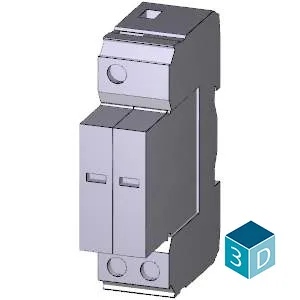

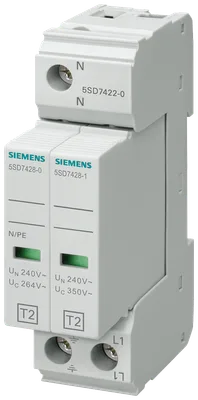

Siemens 5SD7422-0

surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 2-pole, 1+1 circuit for TN-S and TT systems, narrow design

SiemensMFR # 5SD7422-0SKU # YLSUDS2PHQLWGN

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

Have questions?Chat on WhatsApp

About This Product

surge arrester type, 2, requirement class C, Uc 350 V, protective modules, plug-in, 2-pole, 1+1 circuit for TN-S and TT systems, narrow design

Siemens 5SD7422-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1No

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productSurge arrester

design of pole1+N/PE

designation of the protective pathsL-N, N-PE

accessories1 x 5SD7428-1 + 1 x 5SD7428-0

fastening methodTH35 DIN rail

material of the enclosurePBT

size of surge arrester1.4 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

shock acceleration30 gn

vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis5 gn

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

width25.4 mm

height90 mm

depth71.5 mm

Electrical data

type of distribution systemTN-S, TT

at AC230 V

value range of the operating frequency50 / 60 Hz

at AC maximum350 V

between N and PE at AC maximum264 V

between L and (PE)N at AC maximum350 V

discharge current at (8/20) µs20 kA

discharge current 1 phase at (8/20) µs maximum40 kA

between N and PE100 A (264 V a.c.)

short-circuit rating (SCCR) at 264 V25 kA

maximum1.5 kV

between N and L1.4 kV

between PE and N and/or L1.5 kV

— at rated value of discharge current maximum1.5 kV

— at 10 kA maximum1.3 kV

— at 5 kA maximum1.2 kV

— at 4 kA maximum1.1 kV

— at 2 kA maximum1 kV

— at rated value of discharge current maximum0.5 kV

— at 10 kA maximum0.5 kV

— at 5 kA maximum0.5 kV

— at 4 kA maximum0.5 kV

— at 2 kA maximum0.5 kV

between N and PE1.5 kV

response time between L and (PE)N25 ns

response time between N and PE100 ns

adjustable response factor of tripping current1.6

fuse protection type at V-shaped connection63 A AC (gG)

fuse protection type for T-connector315 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque4.3 ... 4.7 N·m

for finely stranded conductor2.5 ... 16 mm²

for rigid conductor2.5 ... 25 mm²

finely stranded2.5 ... 16 mm²

AWG number as coded connectable conductor cross section12 ... 4

design of the thread of the connection screwM5

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactNo

NEMA/UL - Data

type of surge protective device (SPD) according to UL4CA

type of distribution system according to UL1

type of distribution systemTN-S, TT

designation of the protective paths according to ULL-N, L-G, N-G

between L and Ground (GND)2.08 kV

between L and N2 kV

between N and Ground (GND)0.95 kV

between L and Ground (GND)350 V

between L and N350 V

between N and Ground (GND)264 V

between N and Ground (GND) according to UL rated value20 kA

between L and N according to UL rated value20 kA

between L and Ground (GND) according to UL rated value20 kA

according to UL14 ... 2

during operation-40 ... +80 °C

during storage-40 ... +80 °C

installation altitude above sea level according to UL6 562 ft

combustibility class according to UL 94V0

standards according to ULUL 1449 edition 4
