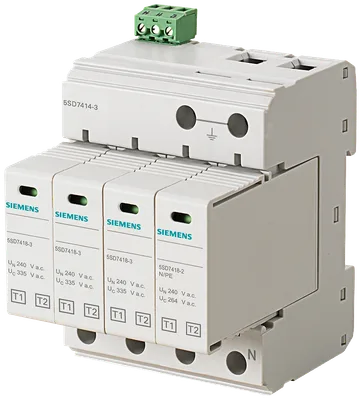

Siemens 5SD7414-3

lightning arrester type 1/type 2, Un 240/400 V, Uc 335/264 V AC, protective modules, plug-in, 3+1 circuit (TN-S, TT), width 72 mm, with remote signaling,

SiemensMFR # 5SD7414-3SKU # YLSX2LPVDOSMQTS

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

Have questions?Chat on WhatsApp

About This Product

lightning arrester type 1/type 2, Un 240/400 V, Uc 335/264 V AC, protective modules, plug-in, 3+1 circuit (TN-S, TT), width 72 mm, with remote signaling,

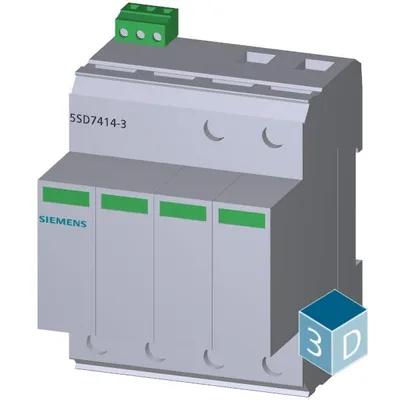

Siemens 5SD7414-3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productCombination surge arresters

design of pole3+N/PE

designation of the protective pathsL-N, L-PE, N-PE

accessories3 x 5SD7418-3 + 1 x 5SD7418-2

fastening methodTH35 DIN rail

material of the enclosurePA 6.6 / PBT

size of surge arrester4 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

shock acceleration30 gn

vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis7.5 gn

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

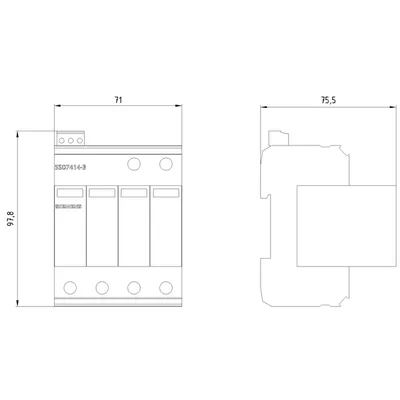

width71.2 mm

height98.7 mm

depth77.5 mm

Electrical data

type of distribution systemTN-S, TT

at AC230 V

value range of the operating frequency50 / 60 Hz

at AC maximum335 V

between N and PE at AC maximum264 V

between L and (PE)N at AC maximum335 V

apparent power consumption maximum810 mVA

total discharge current at (8/20) µs50 kA

between L and (PE)N at (8/20) µs12.5 kA

between L and N at (8/20) µs50 kA

between L and PE at (8/20) µs50 kA

between L and PE at (8/20) µs12.5 kA

between N and PE at (8/20) µs50 kA

total lightning impulse current at (10/350) µs50 kA

lightning current peak value between L and PE12.5 kA

lightning current peak value between N and PE50 kA

lightning current peak value between L and N12.5 kA

charge of the flash between L and N6.25 A·s

charge of the flash between L and PE6.25 A·s

charge of the flash between N and PE25 A·s

between L and N39 kJ/?

between L and PE39 kJ/?

between N and PE625 kJ/?

between N and PE100 A (264 V a.c.)

short-circuit rating (SCCR) at 264 V25 kA

between L and N maximum1.2 kV

between L and PE maximum2 kV

between N and L1.2 kV

between N and PE maximum1.7 kV

between PE and N and/or L1.7 kV

— at rated value of discharge current maximum1.2 kV

— at 10 kA maximum1.1 kV

— at 5 kA maximum1 kV

— at 3 kA maximum0.9 kV

— at rated value of discharge current maximum2 kV

— at 10 kA maximum1.5 kV

— at 5 kA maximum1.2 kV

— at 3 kA maximum1.1 kV

— at rated value of discharge current maximum0.6 kV

— at 10 kA maximum0.5 kV

— at 5 kA maximum0.5 kV

— at 3 kA maximum0.4 kV

between N and PE1.7 kV

response time between L and (PE)N25 ns

response time between N and PE100 ns

adjustable response factor of tripping current1.6

fuse protection type at V-shaped connection80 A AC (gG)

fuse protection type for T-connector160 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque4.3 ... 4.7 N·m

for finely stranded conductor1.5 ... 25 mm²

for rigid conductor1.5 ... 35 mm²

finely stranded1.5 ... 25 mm²

AWG number as coded connectable conductor cross section15 ... 2

design of the thread of the connection screwM5

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes

switching function of the remote signaling contactsPDT contact

operating voltage of the remote signaling contacts at AC5 ... 250 V

operational current of the remote signaling contacts at AC5 mA ... 1.5 A

connection type of remote signaling contactM2

connectable conductor cross-section for remote signaling contacts for rigid conductor0.14 ... 1.5 mm²

connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.14 ... 1.5 mm²

AWG number as coded connectable conductor cross section for remote signaling contacts28 ... 16

tightening torque for remote signaling contacts0.25 N·m

stripped length of the cable for remote signaling contacts7 mm

NEMA/UL - Data

type of distribution systemTN-S, TT

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V0
