How can I get a price quote for Siemens 5SD7413-3?

You can request a fast quote for Siemens 5SD7413-3 from Yılsa Engineering. Reference part number YLSO03ZPJQRVCTJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SD7413-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SD7413-3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SD7413-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

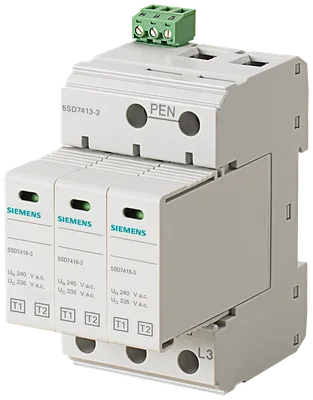

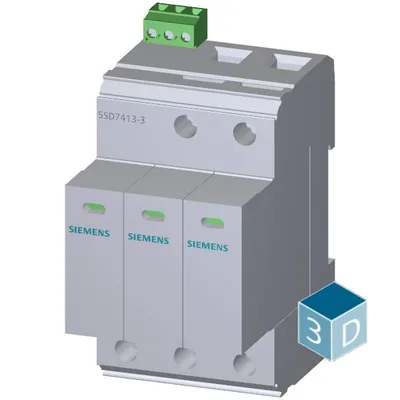

Siemens 5SD7413-3

lightning arrester type 1/type 2, Un 240/400 V, Uc 335 V AC, protective modules, plug-in, 3+0 circuit (TN-C), width 54 mm with remote signaling,

SiemensMFR # 5SD7413-3SKU # YLSO03ZPJQRVCTJ

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

Have questions?Chat on WhatsApp

About This Product

lightning arrester type 1/type 2, Un 240/400 V, Uc 335 V AC, protective modules, plug-in, 3+0 circuit (TN-C), width 54 mm with remote signaling,

Siemens 5SD7413-3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

standardIEC 61643-11: 2011, EN 61643-11: 2012

product designationSurge protection device

Test Class I, Type 1Yes

Test Class II, Type 2Yes

Test Class III, Type 3No

number of SPD ports1

design of the productCombination surge arresters

design of pole3

designation of the protective pathsL-PEN

accessories3 x 5SD7418-3

fastening methodTH35 DIN rail

material of the enclosurePA 6.6 / PBT

size of surge arrester3 MW

degree of pollution2

overvoltage category according to IEC 61010-1III

protection class IP at connection all terminalsIP20

shock acceleration30 gn

vibrational acceleration at 5 Hz ... 500 Hz limited to 2,5 h per axis7.5 gn

relative humidity during operation5 ... 95 %

installation altitude at height above sea level maximum2 000 m

width53.4 mm

height98.7 mm

depth77.5 mm

Electrical data

type of distribution systemTN-C

at AC230 V

value range of the operating frequency50 / 60 Hz

at AC maximum335 V

apparent power consumption maximum810 mVA

discharge current at (8/20) µs12.5 kA

total discharge current at (8/20) µs150 kA

discharge current 1 phase at (8/20) µs maximum50 kA

between L and (PE)N at (8/20) µs12.5 kA

between L and N at (8/20) µs50 kA

total lightning impulse current at (10/350) µs37.5 kA

lightning current peak value at (10/350) µs12.5 kA

charge of the flash at (10/350) µs6.25 A·s

specific energy of the flash at (10/350) µs39 kJ/?

short-circuit rating (SCCR) at 264 V25 kA

protection level1.2 kV

maximum1.2 kV

between N and L1.6 kV

at rated value of discharge current maximum1.2 kV

at 10 kA maximum1.1 kV

at 5 kA maximum1 kV

at 3 kA maximum0.9 kV

Response time25 ns

adjustable response factor of tripping current1.6

fuse protection type at V-shaped connection80 A AC (gG)

fuse protection type for T-connector160 A AC (gG)

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length16 mm

tightening torque4.3 ... 4.7 N·m

for finely stranded conductor1.5 ... 25 mm²

for rigid conductor1.5 ... 35 mm²

finely stranded1.5 ... 25 mm²

AWG number as coded connectable conductor cross section15 ... 2

design of the thread of the connection screwM5

signal designOptical, remote signaling contact

Indicator/remote signaling

product component remote signaling contactYes

switching function of the remote signaling contactsPDT contact

operating voltage of the remote signaling contacts at AC5 ... 250 V

operational current of the remote signaling contacts at AC5 mA ... 1.5 A

connection type of remote signaling contactM2

connectable conductor cross-section for remote signaling contacts for rigid conductor0.14 ... 1.5 mm²

connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.14 ... 1.5 mm²

AWG number as coded connectable conductor cross section for remote signaling contacts28 ... 16

tightening torque for remote signaling contacts0.25 N·m

stripped length of the cable for remote signaling contacts7 mm

NEMA/UL - Data

type of distribution systemTN-C

during operation-40 ... +80 °C

during storage-40 ... +80 °C

combustibility class according to UL 94V0
