How can I get a price quote for Siemens 5SD7413-1KU03?

You can request a fast quote for Siemens 5SD7413-1KU03 from Yılsa Engineering. Reference part number YLSOH8BKWCCDGVQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5SD7413-1KU03 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5SD7413-1KU03 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5SD7413-1KU03?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 5SD7413-1KU03

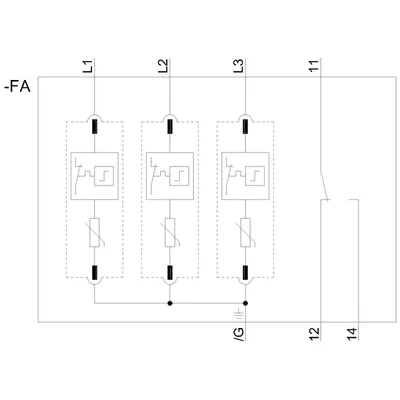

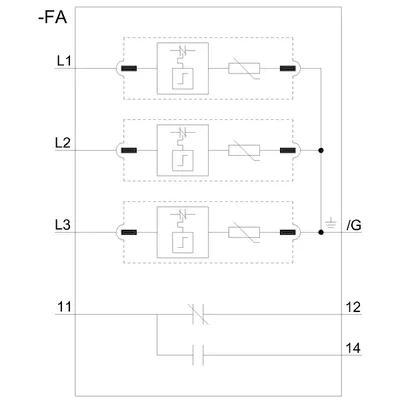

surge arrester UL, type 1 3-pole, 600Y/347V (wye) with remote signaling contact The device only has cULus certification and no CE marking

SiemensMFR # 5SD7413-1KU03SKU # YLSOH8BKWCCDGVQ

number of SPD ports1

design of the productSurge arrester

design of pole3

fastening methodTH35 DIN rail

material of the enclosurethermoplast

size of surge arrester3 MW

Have questions?Chat on WhatsApp

About This Product

surge arrester UL, type 1 3-pole, 600Y/347V (wye) with remote signaling contact The device only has cULus certification and no CE marking

Siemens 5SD7413-1KU03

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General data

number of SPD ports1

design of the productSurge arrester

design of pole3

fastening methodTH35 DIN rail

material of the enclosurethermoplast

size of surge arrester3 MW

protection class IP at connection all terminalsIP20

relative humidity during operation0 ... 95 %

installation altitude at height above sea level maximum2 000 m

width54 mm

height90 mm

depth66 mm

Electrical data

at AC347 V

value range of the operating frequency50 / 60 Hz

discharge current 1 phase at (8/20) µs maximum50 kA

between L and L maximum3 kV

between L and PE maximum1.5 kV

Connections/ Terminals

type of electrical connectionScrew terminal

stripped length12 mm

tightening torque4 ... 5.1 N·m

for finely stranded conductor2.5 ... 25 mm²

for rigid conductor2.5 ... 25 mm²

finely stranded2.5 ... 25 mm²

AWG number as coded connectable conductor cross section14 ... 4

signal designOptical, remote signaling contact

Indicator/remote signaling

type of voltage supplyNEC class 2 circuits

product component remote signaling contactYes

switching function of the remote signaling contactschangeover contact

connectable conductor cross-section for remote signaling contacts for rigid conductor0.34 ... 1.5 mm²

connectable conductor cross-section for remote signaling contacts for finely stranded conductor0.34 ... 1.5 mm²

AWG number as coded connectable conductor cross section for remote signaling contacts22 ... 16

tightening torque for remote signaling contacts0.2 N·m

NEMA/UL - Data

short-circuit rating (SCCR) according to UL200 kA

type of surge protective device (SPD) according to ULopen type 1 SPD

between L and L1 020 V

between L and Ground (GND)510 V

between L and Ground (GND) according to UL rated value20 kA

between L and L according to UL rated value20 kA

with screw-type terminals35 ... 45 lbf·in

for remote signaling contacts3 lbf·in

stripped length [in]0.5 in

according to UL14 ... 4

for remote signaling contacts according to UL22 ... 16

during operation-40 ... +85 °C

during storage-40 ... +85 °C

installation altitude above sea level according to UL6 562 ft

combustibility class according to UL 94V0

standards according to ULUL 1449 Edition 5; CSA - C22.2 No. 269.1
