How can I get a price quote for Siemens 4NC5222-2CE21?

You can request a fast quote for Siemens 4NC5222-2CE21 from Yılsa Engineering. Reference part number CEY-8EF3B02C33EF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 4NC5222-2CE21 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 4NC5222-2CE21 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 4NC5222-2CE21?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

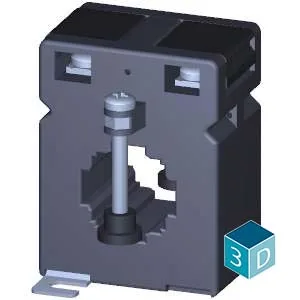

Siemens 4NC5222-2CE21

current transformer 200/5 A, 5 VA, Cl. 1.0

SiemensMFR # 4NC5222-2CE21SKU # CEY-8EF3B02C33EF

product brand nameSENTRON

product designationCurrent transformer

design of the productBushing-type current transformers

product quality calibratedNo

size of the current transformer2

operating apparent power rated value5 V·A

Have questions?Chat on WhatsApp

About This Product

Siemens 4NC5222-2CE21 (current transformer 200/5 A, 5 VA, Cl. 1.0) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 4NC5222-2CE21 — price, stock availability and technical specifications.

Siemens 4NC5222-2CE21

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCurrent transformer

design of the productBushing-type current transformers

product quality calibratedNo

size of the current transformer2

operating apparent power rated value5 V·A

operating voltage0.72 kV

insulation voltage rated value3 kV

designation of overcurrent limiting factorFS 5

operational current rated value maximum400 A

at input rated value200 A

at output rated value5 A

accuracy class of the current transformerclass 1

value range of the operating frequency50/60 Hz

Protection class

protection class IPIP20

suitability for use for outside useNo

suitability for use for interior useYes

product feature touch protectionYes

Short circuit

formula for rated short-time thermal current (Ith) for 1 s according to IEC 61869-260 x Ipr

formula for rated dynamic current (Idyn) according to IEC 61869-22.5 x Ith or 150 x Ipr

Connections

type of electrical connection at outputscrew-type terminals

Mechanical Design

height78.5 mm

height of the opening30 mm

width60 mm

at 1 bus bar maximum30 mm

in case of 2 bus bars maximum30 mm

depth65 mm

fastening methodscrew fixing

diameter of inlet opening28 mm

outer diameter of the push-through conductor maximum28 mm

Net Weight349 g

Environmental conditions

minimum-30 °C

maximum55 °C

minimum-30 °C

maximum70 °C
