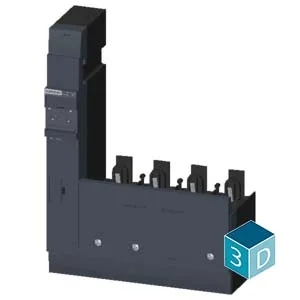

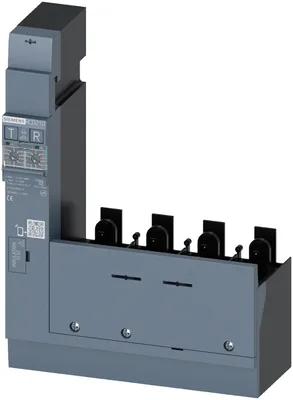

Siemens 3VM9214-0RS20

residual current device RCD210 basic RCD type A side mounted rated resid. current 0.03...5 A at 50/60 Hz adjustable tv 0...3000 ms 4-pole In=250 A Ue=127-480 V accessory for: 3VM with terminal connection

SiemensMFR # 3VM9214-0RS20SKU # YLSOS5GWFZDRABM

product brand nameSENTRON

product designationAccessories

fastening methodscrew fixing

number of poles4

protection class IP / on the frontIP40

minimum127 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VM9214-0RS20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationAccessories

design of the productResidual current protection module type A

accessoriesResidual current protection module type A

General technical data

fastening methodscrew fixing

number of poles4

protection class IP / on the frontIP40

Voltage

minimum127 V

maximum480 V

Current

operational current / at AC / rated value250 A

response value / of the residual current0.03;0.05;0.1;0.3;0.5;1;3;5

product function / communication with residual current equipmentNo

product function / integrated / alarm managementYes

product function / integrated / alarm managementPre-alarm indication 30%

product function / remote-controlled trippingNo

product feature / sealableYes

product function / selectable tripping characteristicNo

product function / selectable RCD or monitoring modeYes

position / of the infeed / on the RCD componentTop or bottom

type of electrical connection / for main current circuitCable connection of basic breaker

set values / of the limit value of not tripping time0;0.06;0.15;0.3;0.5;1.0;2.0;3.0

type of trip indicator / electricalYes

type of trip indicator / communicationNo

operating frequency / rated value / maximum60 Hz

minimum50 Hz

maximum60 Hz

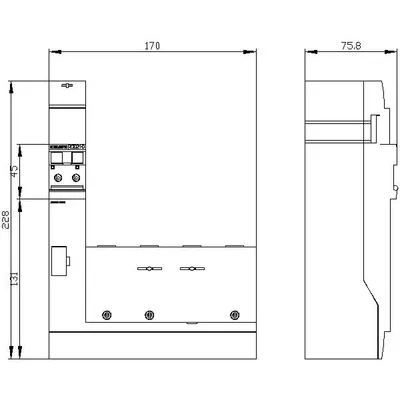

Mechanical Design

height228 mm

width170 mm

depth70 mm

net weight1 483 g

Net Weight1.483 kg

Connetctions according UL

minimum-25 °C

maximum70 °C

minimum-40 °C

maximum80 °C
