How can I get a price quote for Siemens 3VM9114-0RS10?

You can request a fast quote for Siemens 3VM9114-0RS10 from Yılsa Engineering. Reference part number YLSH0FVEGAHGKDF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VM9114-0RS10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VM9114-0RS10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VM9114-0RS10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

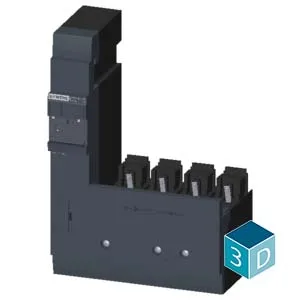

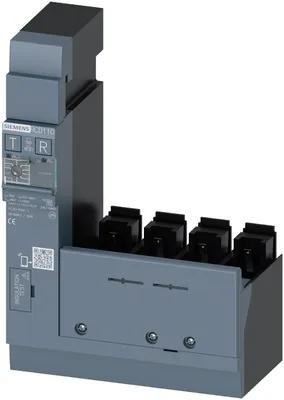

Siemens 3VM9114-0RS10

residual current device RCD110 basic RCD type A side mounted rated resid. current 0.03...5 A at 50/60 Hz tv instantaneous 4-pole In=160 A Ue=127-480 V accessory for: 3VM with terminal connection

SiemensMFR # 3VM9114-0RS10SKU # YLSH0FVEGAHGKDF

product brand nameSENTRON

product designationAccessories

fastening methodscrew fixing

number of poles4

protection class IP / on the frontIP40

minimum127 V

Have questions?Chat on WhatsApp

About This Product

residual current device RCD110 basic RCD type A side mounted rated resid. current 0.03...5 A at 50/60 Hz tv instantaneous 4-pole In=160 A Ue=127-480 V accessory for: 3VM with terminal connection

Siemens 3VM9114-0RS10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationAccessories

design of the productResidual current protection module type A

accessoriesResidual current protection module type A

General technical data

fastening methodscrew fixing

number of poles4

protection class IP / on the frontIP40

Voltage

minimum127 V

maximum480 V

Current

operational current / at AC / rated value160 A

response value / of the residual current0.03;0.05;0.1;0.3;0.5;1;3;5

product function / communication with residual current equipmentNo

product function / integrated / alarm managementYes

product function / integrated / alarm managementPre-alarm indication 30%

product function / remote-controlled trippingNo

product feature / sealableYes

product function / selectable tripping characteristicNo

product function / selectable RCD or monitoring modeYes

position / of the infeed / on the RCD componentTop or bottom

type of electrical connection / for main current circuitCable connection of basic breaker

set values / of the limit value of not tripping time0;

type of trip indicator / electricalYes

type of trip indicator / communicationNo

operating frequency / rated value / maximum60 Hz

minimum50 Hz

maximum60 Hz

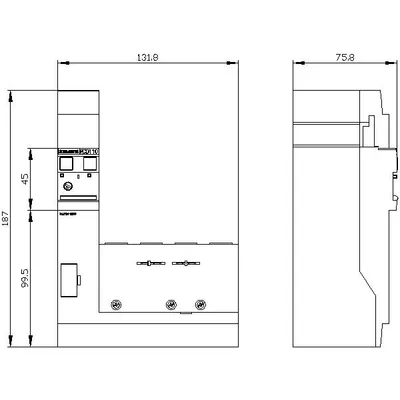

Mechanical Design

height187 mm

width131.8 mm

depth70 mm

net weight1 021 g

Net Weight1.021 kg

Connetctions according UL

minimum-25 °C

maximum70 °C

minimum-40 °C

maximum80 °C
