How can I get a price quote for Siemens 3VM1112-3EE32-0AA0?

You can request a fast quote for Siemens 3VM1112-3EE32-0AA0 from Yılsa Engineering. Reference part number YLSHRIVFTYNCZE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VM1112-3EE32-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VM1112-3EE32-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VM1112-3EE32-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

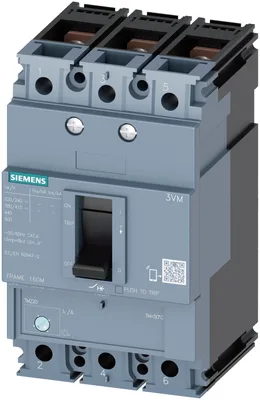

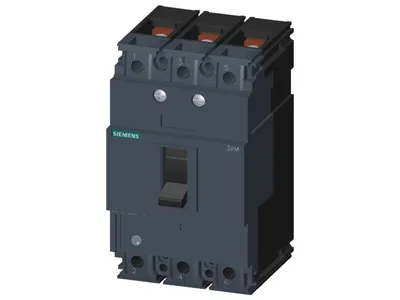

Siemens 3VM1112-3EE32-0AA0

circuit breaker 3VM1 IEC frame 160 breaking capacity class N Icu=25kA @ 415V 3-pole, line protection TM220, ATFM, In=125A overload protection Ir=88A...125A short-circuit protection Ii=10 x In nut keeper kit (for products not manufactured in China, only CE and EEQCO Scheme-X certifications are available)

SiemensMFR # 3VM1112-3EE32-0AA0SKU # YLSHRIVFTYNCZE

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM220

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VM1112-3EE32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM220

protection function of the overcurrent releaseLI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / at 50/60 Hz / rated value500 V

operating voltage / at DC / rated value500 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum23 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole7.73 W

mechanical service life (operating cycles) / typical15 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V6 000

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionWithout

communication functionNo

other measurement functionNo

Net Weight1.004 kg

Current

at 40 °C125 A

at 45 °C125 A

at 50 °C125 A

at 55 °C122 A

at 60 °C120 A

at 65 °C117 A

at 70 °C114 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerN

at 240 V36 kA

at 415 V25 kA

at 440 V16 kA

at 500 V7 kA

at 240 V27 kA

at 415 V18 kA

at 440 V12 kA

at 500 V5 kA

at 240 V76 kA

at 415 V53 kA

at 440 V32 kA

at 500 V12 kA

design of short-circuit protectionFor switching capacity values in DC power systems, see the 3VA Molded Case Circuit Breaker Manual; link available under Service & Support in the last chapter

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum87 A

maximum125 A

minimum1 s

maximum1 s

minimum1 250 A

maximum1 250 A

minimum0 A

maximum0 A

maximum1 250 A

product function / grounding protectionNo

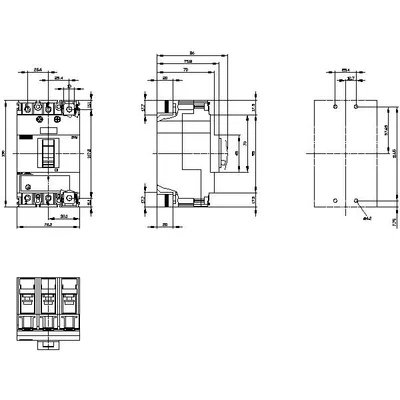

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]5.12 in

height130 mm

width [in]3 in

width76.2 mm

depth [in]2.76 in

depth70 mm

Connections

arrangement of electrical connectors / for main current circuitFront connection

type of electrical connection / for main current circuitnut keeper kit on both ends

type of connectable conductor cross-sections / for flat-bar terminal connection / minimum12 x 1 mm

type of connectable conductor cross-sections / for flat-bar terminal connection / maximum17 x 6.5 mm

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Tin

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C
