How can I get a price quote for Siemens 3VJ2340-6JQ42-0AA0?

You can request a fast quote for Siemens 3VJ2340-6JQ42-0AA0 from Yılsa Engineering. Reference part number YLSTA54SYLKBGO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VJ2340-6JQ42-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VJ2340-6JQ42-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VJ2340-6JQ42-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

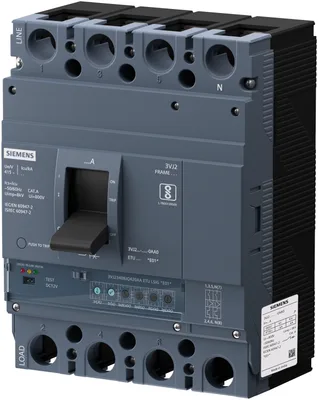

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

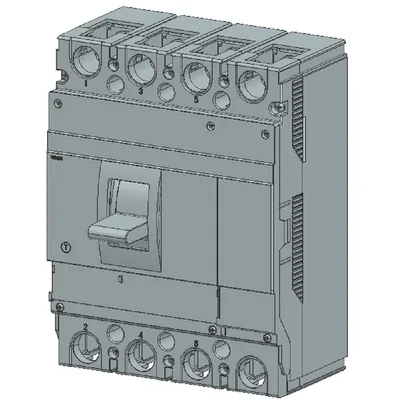

Siemens 3VJ2340-6JQ42-0AA0

Circuit breaker 3VJ2 IEC Microprocessor based MCCB_FS400 Line protection LSIG With Knob 4 Pole In=400A Icu=Ics=36kA@415VAC Overload protection Ir=160A..400A Short-circuit protection Ii=upto 12 x Ir Isd=upto 10Ir ground-fault protection, can be switched off Ig=0.2...1 x In, Screw connection

SiemensMFR # 3VJ2340-6JQ42-0AA0SKU # YLSTA54SYLKBGO

product brand nameSINOPLUS

product designationMolded Case Circuit Breaker

design of the productLine protection

design of the overcurrent releaseMicroprocessor based

number of poles4

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VJ2340-6JQ42-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSINOPLUS

product designationMolded Case Circuit Breaker

design of the productLine protection

design of the overcurrent releaseMicroprocessor based

protection function of the overcurrent releaseLSIG

number of poles4

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / at 50/60 Hz / rated value415 V

operating voltage / at AC / rated value415 V

power loss [W] / maximum995 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole250 W

mechanical service life (operating cycles) / typical8 500

electrical endurance (operating cycles) / at AC-1 / at 380/415 V2 000

ground-fault monitoring versionSummation current formation L + N conductor

Net Weight7.2 kg

Current

continuous current / rated value400 A

at 40 °C400 A

at 45 °C392 A

at 50 °C388 A

at 55 °C380 A

at 60 °C368 A

at 65 °C360 A

at 70 °C352 A

Switching capacity according to IEC 60947

at 415 V36 kA

at 415 V79.2 kA

Adjustable parameters

adjustable current response value current / of the current-dependent overload release160 ... 400 A

adjustable current response value current / of the short-time delayed short-circuit release800 ... 4 000 A

minimum1 600 A

maximum4 800 A

design of the N-conductor protection1

product function / grounding protectionYes

Mechanical Design

undervoltage releaseNo

trip indicatorNo

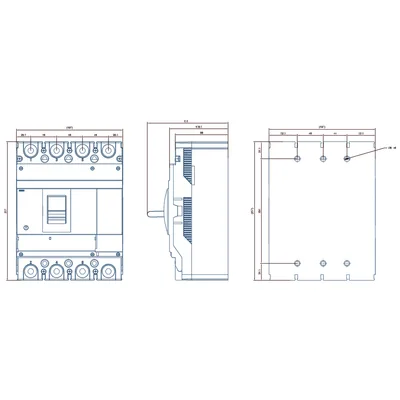

height257 mm

width198 mm

depth112.5 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuitLug connection line and load side

Accessories

product extension / optional / motor driveNo

Environmental conditions

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-25 °C

during storage / maximum70 °C
