How can I get a price quote for Siemens 3VJ2216-8JP32-0AA0?

You can request a fast quote for Siemens 3VJ2216-8JP32-0AA0 from Yılsa Engineering. Reference part number YLS3Q8QXIAAD6MJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VJ2216-8JP32-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VJ2216-8JP32-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VJ2216-8JP32-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

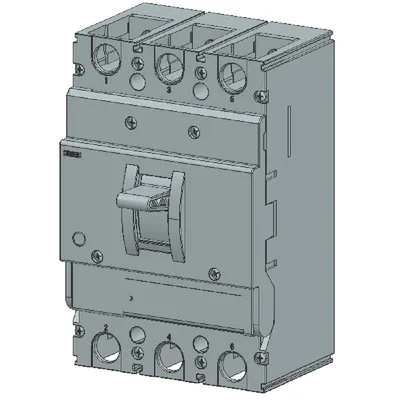

Siemens 3VJ2216-8JP32-0AA0

Circuit breaker 3VJ2 IEC Microprocessor based MCCB_FS250 Line protection LSI With Knob 3 Pole In=160A Icu=Ics=55kA@415VAC Overload protection Ir=64A..160A Short-circuit protection Ii=upto 12 x Ir Isd=upto 10Ir ground-fault protection, can be switched off Ig=0.2...1 x In, Screw connection

SiemensMFR # 3VJ2216-8JP32-0AA0SKU # YLS3Q8QXIAAD6MJ

product brand nameSINOPLUS

product designationMolded Case Circuit Breaker

design of the productLine protection

design of the overcurrent releaseMicroprocessor based

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VJ2216-8JP32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSINOPLUS

product designationMolded Case Circuit Breaker

design of the productLine protection

design of the overcurrent releaseMicroprocessor based

protection function of the overcurrent releaseLSI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / at 50/60 Hz / rated value415 V

operating voltage / at AC / rated value415 V

power loss [W] / maximum210 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole70 W

mechanical service life (operating cycles) / typical10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V5 000

ground-fault monitoring versionwithout

Net Weight1.7 kg

Current

continuous current / rated value160 A

at 40 °C160 A

at 45 °C155.2 A

at 50 °C152 A

at 55 °C147.2 A

at 60 °C140.8 A

at 65 °C137.6 A

Switching capacity according to IEC 60947

at 415 V55 kA

at 415 V121 kA

Adjustable parameters

adjustable current response value current / of the current-dependent overload release64 ... 160 A

adjustable current response value current / of the short-time delayed short-circuit release320 ... 1 600 A

minimum640 A

maximum1 920 A

product function / grounding protectionNo

Mechanical Design

undervoltage releaseNo

trip indicatorNo

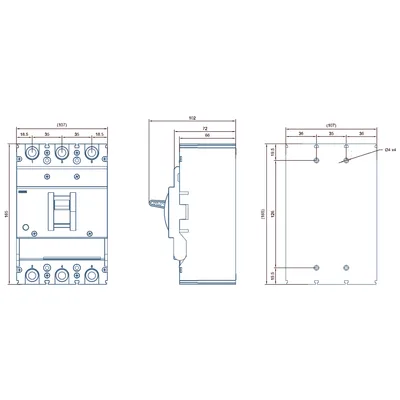

height165 mm

width107 mm

depth79.5 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuitLug connection line and load side

Accessories

product extension / optional / motor driveNo

Environmental conditions

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-25 °C

during storage / maximum70 °C
