How can I get a price quote for Siemens 3VJ1216-5EB42-0AA0?

You can request a fast quote for Siemens 3VJ1216-5EB42-0AA0 from Yılsa Engineering. Reference part number YLS1A7A2MCIJ9C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VJ1216-5EB42-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VJ1216-5EB42-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VJ1216-5EB42-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

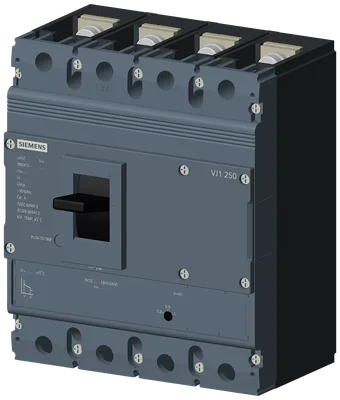

Siemens 3VJ1216-5EB42-0AA0

circuit breaker 3VJ1 IEC framesize 3VJ12 250A line protection ATFM 4-pole Icu=36kA@415V Ics=75% Icu In=160A overload protection Ir=128A...160A short-circuit protection Ii=10 x In Screw connection

SiemensMFR # 3VJ1216-5EB42-0AA0SKU # YLS1A7A2MCIJ9C

product brand nameSINOPLUS

product designationMolded Case Circuit Breaker

design of the productLine protection

design of the overcurrent releaseATFM

number of poles4

insulation voltage / rated value1 000 V

Have questions?Chat on WhatsApp

About This Product

circuit breaker 3VJ1 IEC framesize 3VJ12 250A line protection ATFM 4-pole Icu=36kA@415V Ics=75% Icu In=160A overload protection Ir=128A...160A short-circuit protection Ii=10 x In Screw connection

Siemens 3VJ1216-5EB42-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSINOPLUS

product designationMolded Case Circuit Breaker

design of the productLine protection

design of the overcurrent releaseATFM

protection function of the overcurrent releaseLI

number of poles4

General technical data

insulation voltage / rated value1 000 V

operating voltage / at AC / rated value415 V

power loss [W] / maximum42 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole10.5 W

mechanical service life (operating cycles) / typical15 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V5 000

ground-fault monitoring versionwithout

Net Weight2.58 kg

Current

continuous current / rated value160 A

at 40 °C160 A

at 45 °C160 A

at 50 °C160 A

at 55 °C156.8 A

at 60 °C153.28 A

Switching capacity according to IEC 60947

at 415 V36 kA

at 415 V27 kA

at 415 V75.59 kA

Adjustable parameters

adjustable current response value current / of the current-dependent overload release128 ... 160 A

minimum1 600 A

maximum1 600 A

design of the N-conductor protection1

product function / grounding protectionNo

Mechanical Design

undervoltage releaseNo

trip indicatorNo

height166 mm

width142.5 mm

depth85 mm

Connections

arrangement of electrical connectors / for main current circuitFront connection

type of electrical connection / for main current circuitLug connection line and load side

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP42

during operation / minimum-10 °C

during operation / maximum60 °C

during storage / minimum-15 °C

during storage / maximum75 °C
