Siemens 3VA9987-0TD82

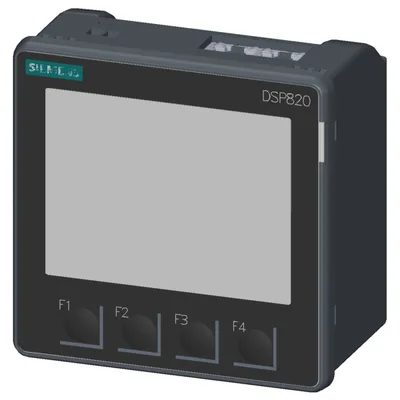

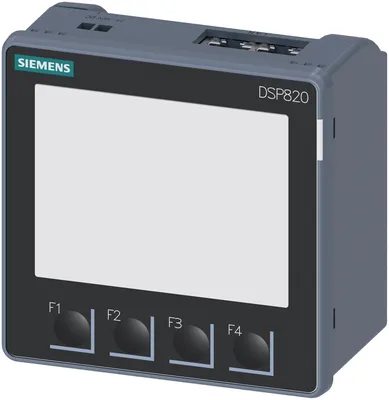

DSP820 control cabinet display for displaying status, measured values, parameters and diagnostics of 3VA2, 3VA2 plus, 3VA27 3WA, 3WL, 3WL10, PAC3200T and PAC2200, IEC, communication via Ethernet, up to 8 devices, 2 Ethernet ports, power supply 24 V DC
product brand nameSENTRON
product designationDSP820 display for up to 8 devices
mounting positionvertical
degree of pollution3
overvoltage categoryI
operating resource protection classIII (according to IEC 61558)
About This Product
DSP820 control cabinet display for displaying status, measured values, parameters and diagnostics of 3VA2, 3VA2 plus, 3VA27 3WA, 3WL, 3WL10, PAC3200T and PAC2200, IEC, communication via Ethernet, up to 8 devices, 2 Ethernet ports, power supply 24 V DC
Siemens 3VA9987-0TD82
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationDSP820 display for up to 8 devices
General technical data
suitability for operationInstallation in fixed switchboard inside enclosed rooms
mounting positionvertical
degree of pollution3
overvoltage categoryI
operating resource protection classIII (according to IEC 61558)
protection class IPIP65 (front) according to IEC60531
Voltage
Rated control supply voltage Us with DC / maximal24 V
Current
data exchange with the electronic tripping unitYes
number of interfaces / according to Fast Ethernet2
type of electrical connection / of the fast Ethernet interfaceRJ45
design of cable / connectable / twisted pairYes
protocol / at the Ethernet interface / is supportedModbus TCP
transfer rate / 2 / for Ethernet100 Mbit/s
number of active connections / at the Ethernet interface8
at the Ethernet interface / auto-MDI(X)Yes
at the Ethernet interface / serial gatewayNo
number of circuit breakers / directly connectable8
power loss [V∙A] / rated value1.7 V·A
power loss [W] / rated value1.7 W
control supply voltage / at DC / rated value / maximum24 V
relative symmetrical tolerance / of the operating range of the control feed voltage20 %
consumed current / maximum0.125 A

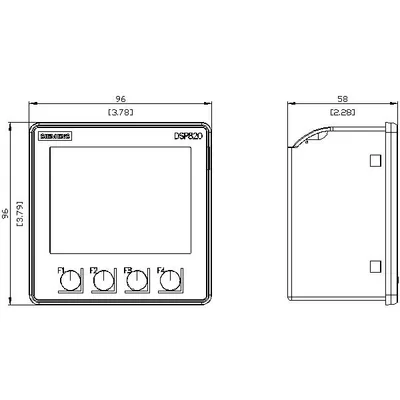

Mechanical Design
height96.13 mm
width96.13 mm
depth57.9 mm
Net Weight229.58 g
Connections
type of electrical connection / at the inputs for supply voltagescrew-type terminals
minimum0.5 mm²
maximum1.5 mm²
minimum0.5 mm²
maximum1.5 mm²
tightening torque / with screw-type terminals / minimum0.5 N·m
tightening torque / with screw-type terminals / maximum0.6 N·m
Connections according IEC
installation depth / without expansion module / maximum51.5 mm
Environmental conditions
minimum-10 °C
maximum55 °C
minimum-25 °C
maximum70 °C
minimum-25 °C
maximum70 °C
