How can I get a price quote for Siemens 3VA9987-0TD12?

You can request a fast quote for Siemens 3VA9987-0TD12 from Yılsa Engineering. Reference part number YLS8LUPNARTIMBO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9987-0TD12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9987-0TD12 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9987-0TD12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

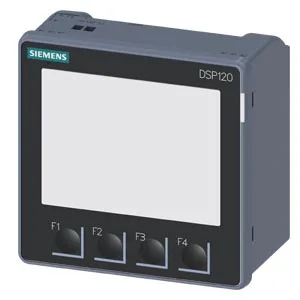

Siemens 3VA9987-0TD12

DSP120 control cabinet display for displaying status, measured values, parameters and diagnostics of a 3VA2 plus or 3WA, IEC, communication via Bluetooth,

SiemensMFR # 3VA9987-0TD12SKU # YLS8LUPNARTIMBO

product brand nameSENTRON

product designationDSP120 display for 3VA2 plus or 3WA

mounting positionvertical

degree of pollution3

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

Have questions?Chat on WhatsApp

About This Product

DSP120 control cabinet display for displaying status, measured values, parameters and diagnostics of a 3VA2 plus or 3WA, IEC, communication via Bluetooth,

Siemens 3VA9987-0TD12

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDSP120 display for 3VA2 plus or 3WA

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionvertical

degree of pollution3

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

protection class IPIP65 (front) according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

data exchange with the electronic tripping unitYes

power loss [V∙A] / rated value1 V·A

power loss [W] / rated value1 W

control supply voltage / at DC / rated value / maximum24 V

relative symmetrical tolerance / of the operating range of the control feed voltage20 %

consumed current / maximum0.14 A

Mechanical Design

height96.13 mm

width96.13 mm

depth57.9 mm

Net Weight229.58 g

Connections

type of electrical connection / at the inputs for supply voltagescrew-type terminals

minimum0.5 mm²

maximum1.5 mm²

minimum0.5 mm²

maximum1.5 mm²

tightening torque / with screw-type terminals / minimum0.5 N·m

tightening torque / with screw-type terminals / maximum0.6 N·m

Connections according IEC

installation depth / without expansion module / maximum51.5 mm

Environmental conditions

minimum-10 °C

maximum55 °C

minimum-25 °C

maximum70 °C

minimum-25 °C

maximum70 °C
