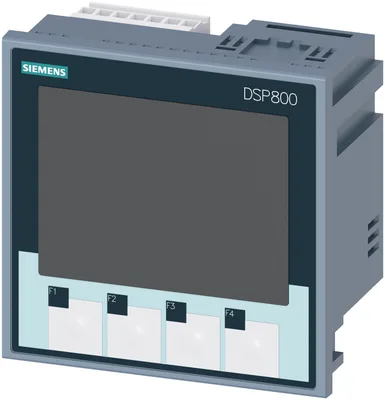

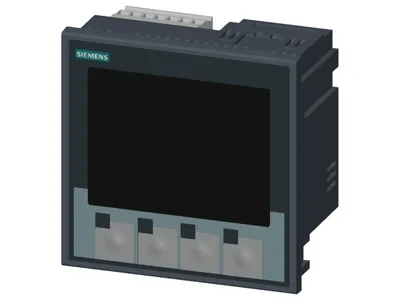

Siemens 3VA9987-0TD10

display DSP800 accessory for: 1 to 8 units 3VA2 breaker

SiemensMFR # 3VA9987-0TD10SKU # CEY-8EF3B038A610

product brand nameSENTRON

product designationDSP800 display

accessoriesCommunication and measurement function

mounting positionvertical

degree of pollution3

overvoltage categoryI

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA9987-0TD10 (display DSP800 accessory for: 1 to 8 units 3VA2 breaker) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3VA9987-0TD10 — price, stock availability and technical specifications.

Siemens 3VA9987-0TD10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDSP800 display

accessoriesCommunication and measurement function

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionvertical

degree of pollution3

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

protection class IPIP65 (front) according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

number of interfaces / according to Fast Ethernet1

type of electrical connection / of the fast Ethernet interfaceRJ45

design of cable / connectable / twisted pairYes

protocol / at the Ethernet interface / is supportedModbus TCP

transfer rate / 2 / for Ethernet100 Mbit/s

number of active connections / at the Ethernet interface8

at the Ethernet interface / auto-MDI(X)Yes

at the Ethernet interface / serial gatewayYes

power loss [V∙A] / rated value2.2 V·A

control supply voltage / at DC / rated value / maximum24 V

consumed current / maximum0.09 A

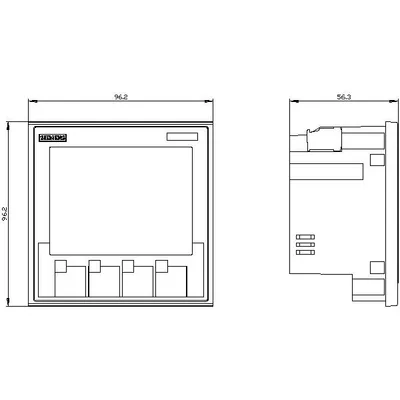

Mechanical Design

height96 mm

width96 mm

depth56 mm

Net Weight273 g

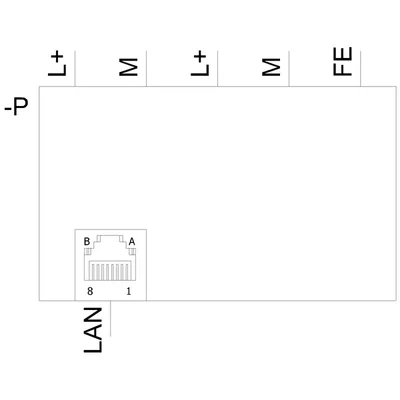

Connections

type of electrical connectionremovable/pluggable

type of electrical connection / at the inputs for supply voltagescrew-type terminals

minimum0.5 mm²

maximum2.5 mm²

minimum0.5 mm²

maximum1.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid2x 20 to 14

Environmental conditions

minimum-10 °C

maximum55 °C

minimum-25 °C

maximum70 °C

minimum-25 °C

maximum70 °C
