How can I get a price quote for Siemens 3VA9987-0TA20?

You can request a fast quote for Siemens 3VA9987-0TA20 from Yılsa Engineering. Reference part number CEY-8EF3B02CE454. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9987-0TA20 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9987-0TA20 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9987-0TA20?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

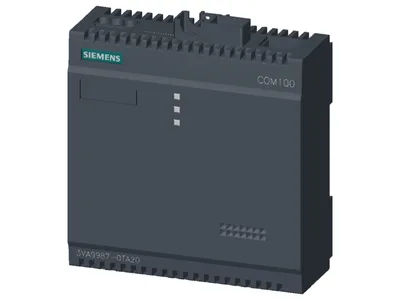

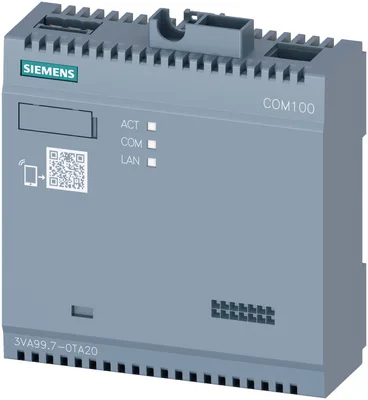

Siemens 3VA9987-0TA20

data concentrator COM100 accessory for: 3VA2

SiemensMFR # 3VA9987-0TA20SKU # CEY-8EF3B02CE454

product brand nameSENTRON

product designationCOM100 breaker data server

accessoriesCommunication and measurement function

mounting positionany

degree of pollution2

overvoltage categoryI

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA9987-0TA20 (data concentrator COM100 accessory for: 3VA2) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3VA9987-0TA20 — price, stock availability and technical specifications.

Siemens 3VA9987-0TA20

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCOM100 breaker data server

accessoriesCommunication and measurement function

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionany

degree of pollution2

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

protection class IPIP20 according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

electronic tripping unit power supplyYes

detection of switch position: On, Off, TrippedYes

communication with function moduleYes

data exchange with the electronic tripping unitYes

number of interfaces / according to Fast Ethernet1

type of electrical connection / of the fast Ethernet interfaceRJ45

design of cable / connectable / twisted pairYes

protocol / at the Ethernet interface / is supportedModbus TCP

transfer rate / 2 / for Ethernet100 Mbit/s

number of active connections / at the Ethernet interface5

at the Ethernet interface / auto-MDI(X)Yes

at the Ethernet interface / serial gatewayYes

at the communication interface / Modbus RTU protocolYes

number of interfaces / of the circuit breaker communication system2

number of bus termination connectors / on circuit breaker communication system2

number of circuit breakers / directly connectable1

total length / of the circuit breaker communication system20 m

number of interfaces / for expansion modules1

PROFIBUS DP protocolYes

PROFINET IO protocolYes

power loss [W] / rated value5 W

power loss [W] / of the circuit breaker communication interface / at maximum expansion26.9 W

control supply voltage / at DC / rated value / maximum24 V

relative symmetrical tolerance / of the operating range of the control feed voltage20 %

consumed current / maximum1.1 A

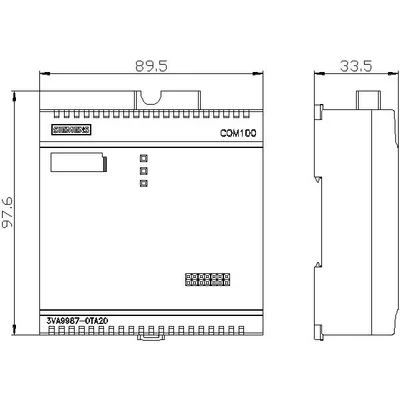

Mechanical Design

height90 mm

width90 mm

number of modular width units5

depth33.5 mm

Net Weight205.5 g

Connections

type of electrical connectionremovable/pluggable

type of electrical connection / at the inputs for supply voltagescrew-type terminals

minimum0.5 mm²

maximum2.5 mm²

minimum0.5 mm²

maximum1.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid2x 20 to 14

Connections according IEC

installation depth / with expansion module / maximum56.5 mm

installation depth / without expansion module / maximum33.5 mm

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-40 °C

maximum80 °C

minimum-40 °C

maximum80 °C
