How can I get a price quote for Siemens 3VA9978-0AB12?

You can request a fast quote for Siemens 3VA9978-0AB12 from Yılsa Engineering. Reference part number YLSK3XTSWIWETG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9978-0AB12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9978-0AB12 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9978-0AB12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3VA9978-0AB12

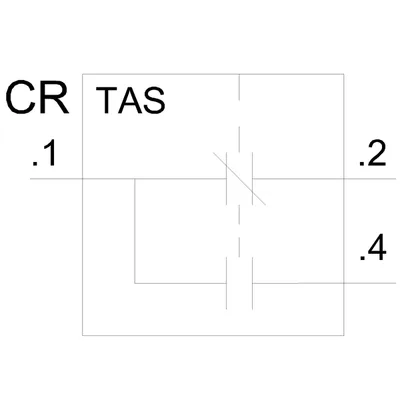

trip alarm switch changeover contacts Type HQ (7 mm) accessory for: 3VA4/5/6

SiemensMFR # 3VA9978-0AB12SKU # YLSK3XTSWIWETG

product brand nameSENTRON

product designationTripped signaling switch

accessoriesTripped signaling switch

degree of pollution3

overvoltage categoryIII

surge voltage resistance4 kV

Have questions?Chat on WhatsApp

About This Product

trip alarm switch changeover contacts Type HQ (7 mm) accessory for: 3VA4/5/6

Siemens 3VA9978-0AB12

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTripped signaling switch

accessoriesTripped signaling switch

General technical data

degree of pollution3

overvoltage categoryIII

Voltage

surge voltage resistance4 kV

operating voltage / at AC / according to CSA and UL300 V

operating voltage / at DC / according to CSA and UL250 V

operating voltage / at AC / at 50 Hz / rated value / minimum240 V

operating voltage / at DC / rated value / minimum250 V

Current

thermal current6 A

at AC-12 / at 12 V6 A

at AC-12 / at 24 V6 A

at AC-12 / at 48 V6 A

at AC-12 / at 125 V6 A

at AC-12 / at 220/240 V6 A

at DC-12 / at 12 V6 A

at DC-12 / at 24 V4 A

at DC-12 / at 48 V2 A

at DC-12 / at 110 V0.5 A

at DC-12 / at 250 V0.25 A

at DC-13 / at 12 V1 A

at DC-13 / at 24 V0.8 A

at DC-13 / at 48 V0.4 A

at DC-13 / at 110 V0.2 A

at DC-13 / at 250 V0.1 A

at AC-15 / at 12 V3 A

at AC-15 / at 24 V3 A

at AC-15 / at 48 V3 A

at AC-15 / at 125 V3 A

at AC-15 / at 220/240 V3 A

Mechanical Design

Net Weight28 g

tightening torque / with screw-type terminals / minimum0.4 N·m

tightening torque / with screw-type terminals / maximum0.5 N·m

Connections according IEC

stripped length15 mm

maximum0.5 ... 1.5

minimum20

maximum16

Connetctions according UL

stripped length [in]0.6 in

tightening torque [lbf·in] / with screw-type terminals / minimum3.5 lbf·in

tightening torque [lbf·in] / with screw-type terminals / maximum4.4 lbf·in
