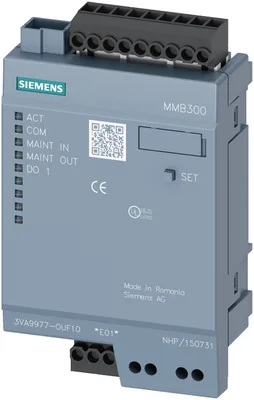

Siemens 3VA9977-0UF10

Maintenance Mode Box MMB300 incl. connecting cable 1.5 m 3VA - MMB300 accessory for: 3VA6

SiemensMFR # 3VA9977-0UF10SKU # YLSNP31J8URRGS2

product brand nameSENTRON

product designationMaintenance mode box MMB300

accessoriesDigital input and output module

mounting positionany

degree of pollution3

protection class IPIP20 according to IEC60529

Have questions?Chat on WhatsApp

About This Product

Maintenance Mode Box MMB300 incl. connecting cable 1.5 m 3VA - MMB300 accessory for: 3VA6

Siemens 3VA9977-0UF10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMaintenance mode box MMB300

accessoriesDigital input and output module

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionany

degree of pollution3

protection class IPIP20 according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

electronic tripping unit power supplyYes

digital input and output moduleYes

number of interfaces / of the circuit breaker communication system1

number of digital inputs1

input voltage / at digital input / at DC / rated value24 V

operating range of digital inputIEC: SELV/ PELV UL: Class2

initial value for signal<1>-recognition15 V

full-scale value for signal<0> recognition5 V

number of relay outputs2

at AC / maximum250 V

at DC / maximum250 V

at AC / at 250 V / rated value6 A

at DC / at 30 V / rated value5 A

at AC-12 / at 250 V6 A

at AC-15 / at 250 V3 A

at DC-12 / at 250 V0.2 A

at DC-13 / at 250 V0.1 A

for signal <1> / initial value10 mA

for signal <1> / full-scale value27 mA

for signal <0> / maximum0.2 mA

design of DIAZED fuse link / for short-circuit protection of auxiliary contacts of output relayD0 6 A 500 V gL/gG

overvoltage category / of the output relayIII (relay) I (other)

power loss [V∙A] / rated value4.8 V·A

control supply voltage / at DC / rated value / maximum24 V

relative symmetrical tolerance / of the operating range of the control feed voltage20 %

consumed current / maximum0.2 A

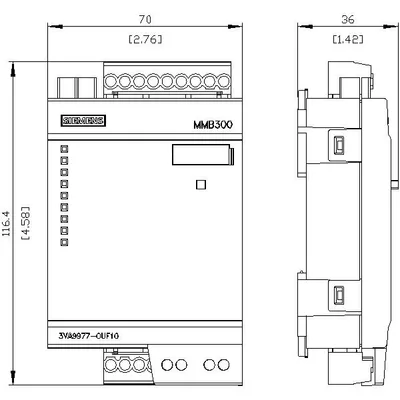

Mechanical Design

height116 mm

width70 mm

depth36 mm

Net Weight234 g

Connections

type of electrical connectionremovable/pluggable

type of electrical connection / at the inputs for supply voltagescrew-type terminals

minimum0.5 mm²

maximum2.5 mm²

minimum0.5 mm²

maximum2.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid1x 21 to 14; 2x 21 to 16

tightening torque / with screw-type terminals / minimum3.56 N·m

tightening torque / with screw-type terminals / maximum4.44 N·m

Environmental conditions

minimum-25 °C

maximum60 °C

minimum-25 °C

maximum80 °C

minimum-25 °C

maximum70 °C
