How can I get a price quote for Siemens 3VA9977-0UA10?

You can request a fast quote for Siemens 3VA9977-0UA10 from Yılsa Engineering. Reference part number YLSTNDXABBDVQWW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9977-0UA10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9977-0UA10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9977-0UA10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

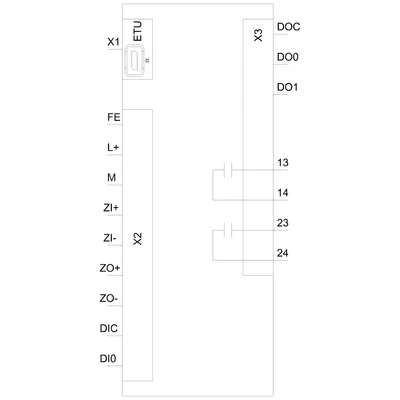

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3VA9977-0UA10

external function box EFB300 incl. connecting cable 1.5 m 3VA - EFB300 accessory for: 3VA6

SiemensMFR # 3VA9977-0UA10SKU # YLSTNDXABBDVQWW

product brand nameSENTRON

product designationExternal function box EFB300

accessoriesDigital input and output module

mounting positionany

degree of pollution3

protection class IPIP20 according to IEC60529

Have questions?Chat on WhatsApp

About This Product

external function box EFB300 incl. connecting cable 1.5 m 3VA - EFB300 accessory for: 3VA6

Siemens 3VA9977-0UA10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationExternal function box EFB300

accessoriesDigital input and output module

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionany

degree of pollution3

protection class IPIP20 according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

electronic tripping unit power supplyYes

digital input and output moduleYes

number of interfaces / of the circuit breaker communication system1

at input / maximum connectable20

at output / maximum connectable8

design of the connecting cable / of the ZSI moduleFlexible, shielded (at least 85% overlap), twisted cable, max. capacity: 200 nF/km (conductor/shield), 160 nF/km (conductor/conductor), inductivity 0.65 H/km, total line resistance: max. 28 ohms

number of digital inputs1

input voltage / at digital input / at DC / rated value24 V

operating range of digital inputIEC: SELV/ PELV

initial value for signal<1>-recognition15 V

full-scale value for signal<0> recognition5 V

number of relay outputs2

at AC / maximum250 V

at DC / maximum250 V

at AC / at 250 V / rated value6 A

at DC / at 30 V / rated value5 A

at AC-12 / at 250 V6 A

at AC-15 / at 250 V3 A

at DC-12 / at 250 V0.2 A

at DC-13 / at 250 V0.1 A

for signal <1> / initial value10 mA

for signal <1> / full-scale value27 mA

for signal <0> / maximum0.2 mA

design of DIAZED fuse link / for short-circuit protection of auxiliary contacts of output relayD0 6 A 500 V gL/gG

overvoltage category / of the output relayIII (relay) I (other)

number of static semiconductor outputs2

voltage / of the static semiconductor outputs / at DC / rated value24 V

voltage / of the static semiconductor outputs / at DC / rated value / noteIEC: SELV/ PELV

operational current / of the static semiconductor outputs / at DC / rated value100 mA

power loss [V∙A] / rated value4 V·A

control supply voltage / at DC / rated value / maximum24 V

relative symmetrical tolerance / of the operating range of the control feed voltage20 %

consumed current / maximum0.16 A

Mechanical Design

height116 mm

width70 mm

depth36 mm

Net Weight243 g

Connections

type of electrical connectionremovable/pluggable

type of electrical connection / at the inputs for supply voltagescrew-type terminals

minimum0.5 mm²

maximum2.5 mm²

minimum0.5 mm²

maximum2.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid1x 20 to 14; 2x 20 to 16

tightening torque / with screw-type terminals / minimum0.4 N·m

tightening torque / with screw-type terminals / maximum0.5 N·m

Environmental conditions

minimum-25 °C

maximum60 °C

minimum-25 °C

maximum80 °C

minimum-25 °C

maximum70 °C
