How can I get a price quote for Siemens 3VA9977-0TD10?

You can request a fast quote for Siemens 3VA9977-0TD10 from Yılsa Engineering. Reference part number YLSNSCQHNBZTFR7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9977-0TD10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9977-0TD10 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9977-0TD10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

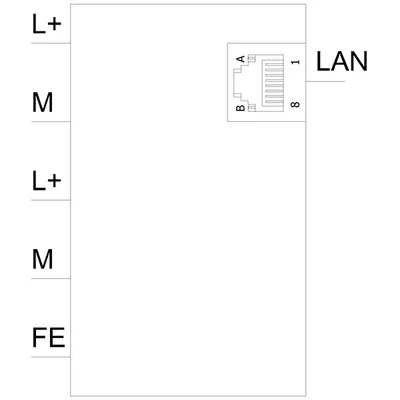

Siemens 3VA9977-0TD10

Successor 3VA9977-0TD82 will be available in May 2026. to 8 units 3VA6 breaker

SiemensMFR # 3VA9977-0TD10SKU # YLSNSCQHNBZTFR7

product brand nameSENTRON

product designationDSP800 display

accessoriesCommunication and measurement function

mounting positionany

degree of pollution3

overvoltage categoryI

Have questions?Chat on WhatsApp

About This Product

Successor 3VA9977-0TD82 will be available in May 2026. to 8 units 3VA6 breaker

Siemens 3VA9977-0TD10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationDSP800 display

accessoriesCommunication and measurement function

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionany

degree of pollution3

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

protection class IPIP65 (front) according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

number of interfaces / according to Fast Ethernet1

type of electrical connection / of the fast Ethernet interfaceRJ45

design of cable / connectable / twisted pairYes

protocol / at the Ethernet interface / is supportedModbus TCP

transfer rate / 2 / for Ethernet100 Mbit/s

number of active connections / at the Ethernet interface8

at the Ethernet interface / auto-MDI(X)Yes

at the Ethernet interface / serial gatewayYes

power loss [V∙A] / rated value2.2 V·A

control supply voltage / at DC / rated value / maximum24 V

consumed current / maximum0.09 A

Mechanical Design

height96 mm

width96 mm

depth56 mm

Net Weight287 g

Connections

type of electrical connectionremovable/pluggable

type of electrical connection / at the inputs for supply voltagescrew-type terminals

minimum0.5 mm²

maximum2.5 mm²

minimum0.5 mm²

maximum1.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid2x 20 to 14

Environmental conditions

minimum-10 °C

maximum55 °C

minimum-25 °C

maximum70 °C

minimum-25 °C

maximum70 °C
