How can I get a price quote for Siemens 3VA9977-0TC11?

You can request a fast quote for Siemens 3VA9977-0TC11 from Yılsa Engineering. Reference part number YLSHJGJRATXV5S. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9977-0TC11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9977-0TC11 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9977-0TC11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

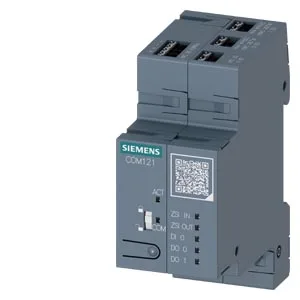

Siemens 3VA9977-0TC11

COM121 communications module for Modbus TCP suitable for 3VA6 plus mounting with adapter on the breaker or on a DIN rail 2 Ethernet ports with an integrated web server additional mounting kit required additional 2 configurable outputs, e.g. for controlling an MO320 1 digital input ZSI functionality

SiemensMFR # 3VA9977-0TC11SKU # YLSHJGJRATXV5S

product brand nameSENTRON

product designationCommunications module

mounting positionany

degree of pollution3

overvoltage categoryIII

operating resource protection classIII (according to IEC 61558)

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA9977-0TC11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCommunications module

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionany

degree of pollution3

overvoltage categoryIII

operating resource protection classIII (according to IEC 61558)

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

electronic tripping unit power supplyYes

detection of switch position: On, Off, TrippedNo

communication with function moduleYes

data exchange with the electronic tripping unitYes

number of interfaces / according to Fast Ethernet2

type of electrical connection / of the fast Ethernet interfaceRJ45

design of cable / connectable / twisted pairYes

protocol / at the Ethernet interface / is supportedModbus TCP

transfer rate / 2 / for Ethernet100 Mbit/s

number of active connections / at the Ethernet interface6

at the Ethernet interface / auto-MDI(X)Yes

at the Ethernet interface / serial gatewayYes

at the communication interface / Modbus RTU protocolNo

number of circuit breakers / directly connectable1

number of digital inputs1

input voltage / at digital input / at DC / rated value24 V

operating range of digital input0-24

initial value for signal<1>-recognition11 V

full-scale value for signal<0> recognition0 V

number of relay outputs0

number of static semiconductor outputs2

voltage / of the static semiconductor outputs / at DC / rated value250 V

operational current / of the static semiconductor outputs / at DC / rated value230 mA

power loss [W] / rated value0.7 W

control supply voltage / at DC / rated value / maximum24 V

relative symmetrical tolerance / of the operating range of the control feed voltage20 %

consumed current / maximum0.131 A

Mechanical Design

height90 mm

width36.8 mm

number of modular width units2

depth70 mm

Net Weight0.15 kg

Connections

type of electrical connection / at the inputs for supply voltagespring-loaded

minimum0.5 mm²

maximum1.5 mm²

minimum0.5 mm²

maximum1.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid1x 24 to 16

Connections according IEC

installation depth / without expansion module / maximum70 mm

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-40 °C

maximum80 °C

minimum-40 °C

maximum80 °C
