How can I get a price quote for Siemens 3VA9674-0JC34?

You can request a fast quote for Siemens 3VA9674-0JC34 from Yılsa Engineering. Reference part number YLSJUR2ZQK5J8BU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9674-0JC34 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9674-0JC34 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9674-0JC34?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

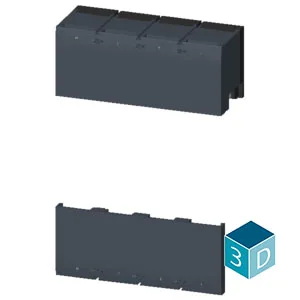

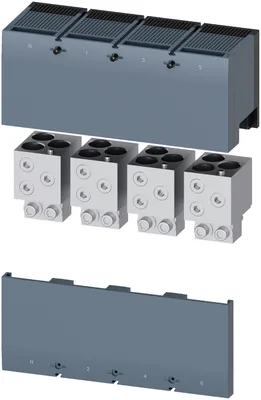

Siemens 3VA9674-0JC34

circular conduc. terminal TA4.2 3 x 500 kcmil…750 kcmil with aux. conductor voltage tap for 3 cables; 4 units accessory for: 3VA55; 3VA65/66

SiemensMFR # 3VA9674-0JC34SKU # YLSJUR2ZQK5J8BU

product brand nameSENTRON

design of the productConnection method

accessoriesWire connector

designation / of the terminalTA4.2

Net Weight4.324 kg

for copper cable / stranded / minimum240 mm²

Have questions?Chat on WhatsApp

About This Product

circular conduc. terminal TA4.2 3 x 500 kcmil…750 kcmil with aux. conductor voltage tap for 3 cables; 4 units accessory for: 3VA55; 3VA65/66

Siemens 3VA9674-0JC34

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCircular conductor terminal voltage tap, 3 cables, external, 4 units

design of the productConnection method

accessoriesWire connector

General technical data

designation / of the terminalTA4.2

type of electrical connection / with control wire tapYes

Mechanical Design

Net Weight4.324 kg

Connections according IEC

for copper cable / stranded / minimum240 mm²

for copper cable / stranded / maximum300 mm²

for aluminum cable / stranded / minimum240 mm²

for aluminum cable / stranded / maximum300 mm²

stripped length28,7/42,9/58,4 mm

stranded240 - 300 mm²: 42.4 Nm

finely stranded240 mm²: 42.4 Nm

finely stranded / with core end processing240 mm²: 42.4 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B90 °C

stripped length1.13/1.69/2.3 in

for copper cable / stranded / minimum500 kcmil

for copper cable / stranded / maximum750 kcmil

for copper cable / finely stranded / minimum500 kcmil

for copper cable / finely stranded / maximum500 kcmil

for aluminum cable / stranded / minimum500 kcmil

for aluminum cable / stranded / maximum750 kcmil

stranded500-750 kcmil: 375 lb-in

finely stranded500 kcmil: 375.0 lb-in
