How can I get a price quote for Siemens 3VA9483-0JC23?

You can request a fast quote for Siemens 3VA9483-0JC23 from Yılsa Engineering. Reference part number CEY-8EF3B038A64D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9483-0JC23 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9483-0JC23 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9483-0JC23?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

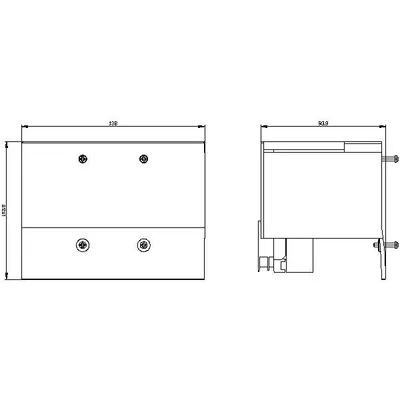

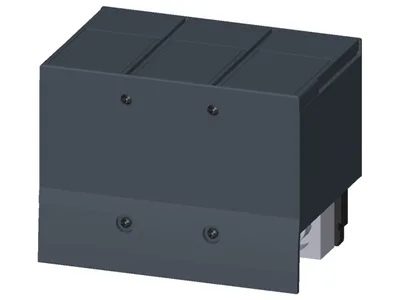

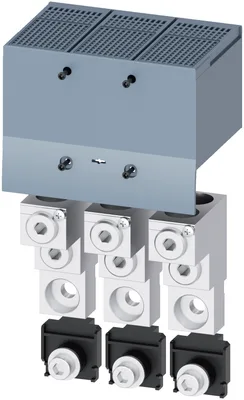

Siemens 3VA9483-0JC23

circular conduc. terminal TA2.4 2 x 70…300 mm² for 2 cables with auxiliary conductor voltage tap 3 units accessory for: plug-in/withdrawable unit 3VA13/14; 3VA23/24

SiemensMFR # 3VA9483-0JC23SKU # CEY-8EF3B038A64D

product brand nameSENTRON

product designationcircular conductor terminal

design of the productConnection method

accessoriesWire connector

designation / of the terminalTA2.4

Net Weight1.025 kg

Have questions?Chat on WhatsApp

About This Product

circular conduc. terminal TA2.4 2 x 70…300 mm² for 2 cables with auxiliary conductor voltage tap 3 units accessory for: plug-in/withdrawable unit 3VA13/14; 3VA23/24

Siemens 3VA9483-0JC23

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationcircular conductor terminal

design of the productConnection method

accessoriesWire connector

General technical data

designation / of the terminalTA2.4

type of electrical connection / with control wire tapYes

Mechanical Design

Net Weight1.025 kg

Connections according IEC

for copper cable / stranded / minimum70 mm²

for copper cable / stranded / maximum300 mm²

for aluminum cable / stranded / minimum70 mm²

for aluminum cable / stranded / maximum300 mm²

stripped length31 / 58,5 mm

stranded70 - 300 mm²: 50.8 Nm

finely stranded70 - 240 mm²: 50.8 Nm

finely stranded / with core end processing70 - 185 mm²: 50.8 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B75 °C

stripped length1.2 / 2.3 in

for copper cable / stranded / minimum2/0 AWG

for copper cable / stranded / maximum600 kcmil

for aluminum cable / stranded / minimum2/0 AWG

for aluminum cable / stranded / maximum600 kcmil

stranded2/0 - 600kcmil: 450 lb-in
