How can I get a price quote for Siemens 3VA9387-0TB12?

You can request a fast quote for Siemens 3VA9387-0TB12 from Yılsa Engineering. Reference part number YLSK68X3YTQ4PP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9387-0TB12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9387-0TB12 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9387-0TB12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

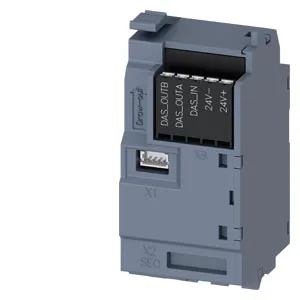

Siemens 3VA9387-0TB12

BSC status module for 3VA2 plus for sizes 400 A to 1250 A senses ON/OFF/TRIPPED senses pos. in the guide frame controls SEO520 1 input 2 outputs configurable predefined for DAS+ optional power supply for Bluetooth and ZigBee recommended for communication

SiemensMFR # 3VA9387-0TB12SKU # YLSK68X3YTQ4PP

product brand nameSENTRON

mounting positionRight switch pocket

degree of pollution3

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

protection class IPIP20 according to IEC60529

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA9387-0TB12

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationBSC status module for 3VA6 plus 400 A - 1200 A

General technical data

suitability for operationInstallation in fixed switchboard inside enclosed rooms

mounting positionRight switch pocket

degree of pollution3

overvoltage categoryI

operating resource protection classIII (according to IEC 61558)

protection class IPIP20 according to IEC60529

Voltage

Rated control supply voltage Us with DC / maximal24 V

Current

at ambient temperature < 90°C / rated value500 mA

at ambient temperature < 105°C / rated value100 mA

electronic tripping unit power supplyYes

detection of switch position: On, Off, TrippedYes

communication with function moduleYes

communication with motor driveYes

communication with residual current equipmentYes

data exchange with the electronic tripping unitYes

number of digital inputs1

input voltage / at digital input / at DC / rated value24 V

operating range of digital input0-24

initial value for signal<1>-recognition12 V

full-scale value for signal<0> recognition0 V

number of static semiconductor outputs1

voltage / of the static semiconductor outputs / at DC / rated value24 V

power loss [V∙A] / rated value1.68 V·A

power loss [W] / rated value1.68 W

control supply voltage / at DC / rated value / maximum24 V

relative symmetrical tolerance / of the operating range of the control feed voltage20 %

consumed current / maximum0.173 A

Mechanical Design

height35.9 mm

width28.8 mm

number of slots4

number of modular width units4

depth64 mm

Net Weight202.425 g

Connections

type of electrical connection / at the inputs for supply voltagespring-loaded

minimum0.5 mm²

maximum1.5 mm²

minimum0.5 mm²

maximum1.5 mm²

type of connectable conductor cross-sections / at the digital inputs / for AWG cables / solid1x 20 to 16

Environmental conditions

minimum-25 °C

maximum70 °C

minimum-40 °C

maximum80 °C

minimum-40 °C

maximum80 °C
