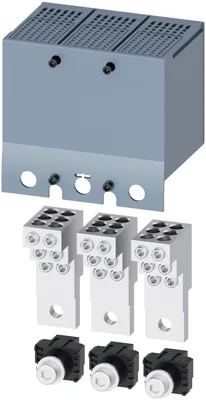

Siemens 3VA9243-0JF68

wire connector TA2.6 6 x 14 AWG...2 AWG for 6 cables 3 units; incl. terminal cover extended with holes for voltage testing; accessory for: 3VA61/62 plug-in socket/withdrawable socket 3VA61/62

SiemensMFR # 3VA9243-0JF68SKU # YLSM8RCPTRPLZU

product brand nameSENTRON

design of the productConnection method

accessoriesWire connector

designation / of the terminalTA2.6

Net Weight451 g

for copper cable / stranded / minimum1.5 mm²

Have questions?Chat on WhatsApp

About This Product

wire connector TA2.6 6 x 14 AWG...2 AWG for 6 cables 3 units; incl. terminal cover extended with holes for voltage testing; accessory for: 3VA61/62 plug-in socket/withdrawable socket 3VA61/62

Siemens 3VA9243-0JF68

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCircular conductor terminal 6 cables 3 units

design of the productConnection method

accessoriesWire connector

General technical data

designation / of the terminalTA2.6

type of electrical connection / with control wire tapNo

Mechanical Design

Net Weight451 g

Connections according IEC

for copper cable / stranded / minimum1.5 mm²

for copper cable / stranded / maximum35 mm²

stripped length13.5 / 26 / 38.5 mm

solid1.5 mm²: 2.8 Nm, 2.5-10 mm²: 6.2 Nm, 16 mm²: 7 Nm

stranded1.5 mm²: 2.8 Nm; 2.5 - 10 mm²: 6.2 Nm; 16 - 35 mm²: 7 Nm

finely stranded1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm

finely stranded / with core end processing1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B75 °C

stripped length0.53 / 1.0 / 1.5 in

for copper cable / solid / minimum14 AWG

for copper cable / solid / maximum10 AWG

for copper cable / stranded / minimum14 AWG

for copper cable / stranded / maximum2 AWG

for aluminum cable / stranded / minimum8 AWG

for aluminum cable / stranded / maximum2 AWG

solid14-10 AWG: 55 lb-in

stranded14 - 8 AWG: 55 lb-in; 6 - 2 AWG: 62 lb-in
