How can I get a price quote for Siemens 3VA9233-0JC18?

You can request a fast quote for Siemens 3VA9233-0JC18 from Yılsa Engineering. Reference part number YLS9RWR1Q9WT04. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9233-0JC18 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9233-0JC18 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9233-0JC18?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

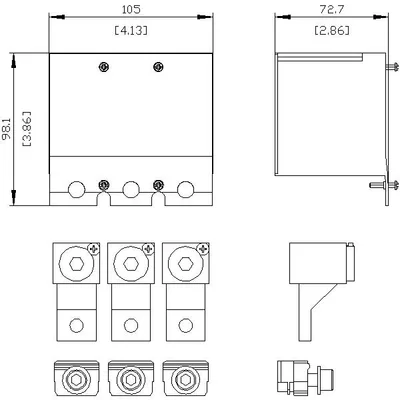

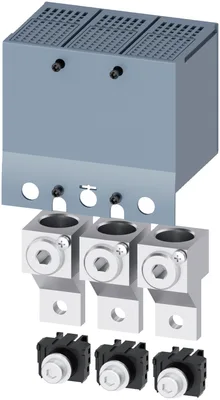

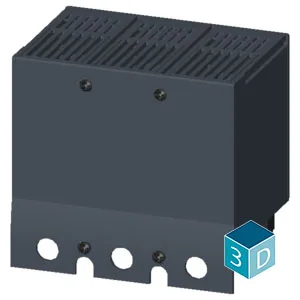

Siemens 3VA9233-0JC18

wire connector TA2.2 2 AWG...350 kcmil with control wire tap; for 1 cable; 3 units; incl. terminal cover extended with holes for voltage testing; accessory for: 3VA52

SiemensMFR # 3VA9233-0JC18SKU # YLS9RWR1Q9WT04

product brand nameSENTRON

design of the productConnection method

accessoriesWire connector

designation / of the terminalTA2.2

Net Weight515 g

for copper cable / stranded / minimum50 mm²

Have questions?Chat on WhatsApp

About This Product

wire connector TA2.2 2 AWG...350 kcmil with control wire tap; for 1 cable; 3 units; incl. terminal cover extended with holes for voltage testing; accessory for: 3VA52

Siemens 3VA9233-0JC18

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCircular conductor terminal 1 cable 3 units

design of the productConnection method

accessoriesWire connector

General technical data

designation / of the terminalTA2.2

type of electrical connection / with control wire tapYes

Mechanical Design

Net Weight515 g

Connections according IEC

for copper cable / stranded / minimum50 mm²

for copper cable / stranded / maximum240 mm²

for aluminum cable / stranded / minimum50 mm²

for aluminum cable / stranded / maximum240 mm²

stripped length30,5 mm

stranded50 - 240 mm²: 31.1 Nm

finely stranded50 - 185 mm²: 31.1 Nm

finely stranded / with core end processing50 - 185 mm²: 31.1 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B75 °C

stripped length1.2 in

for copper cable / stranded / minimum2 AWG

for copper cable / stranded / maximum350 kcmil

for aluminum cable / stranded / minimum2 AWG

for aluminum cable / stranded / maximum350 kcmil

stranded2 AWG - 350 kcmil: 275 lb-in
