How can I get a price quote for Siemens 3VA9143-0JA12?

You can request a fast quote for Siemens 3VA9143-0JA12 from Yılsa Engineering. Reference part number YLSB8PH47UWYSN8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9143-0JA12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9143-0JA12 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9143-0JA12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

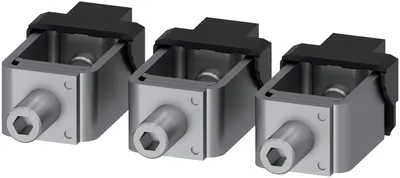

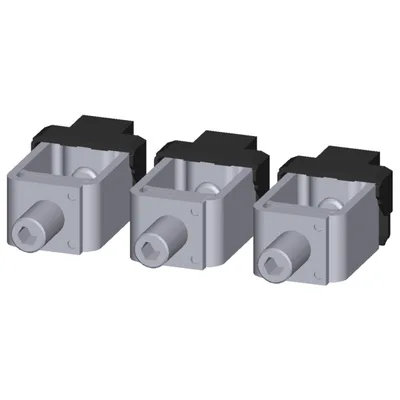

Siemens 3VA9143-0JA12

box terminal; 3 units accessory for: 3VA61/62

SiemensMFR # 3VA9143-0JA12SKU # YLSB8PH47UWYSN8

product brand nameSENTRON

product designationbox terminal 3 units

design of the productConnection method

accessoriesBox terminal

designation / of the terminalTS1.2

Net Weight167 g

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA9143-0JA12 (box terminal; 3 units accessory for: 3VA61/62) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3VA9143-0JA12 — price, stock availability and technical specifications.

Siemens 3VA9143-0JA12

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationbox terminal 3 units

design of the productConnection method

accessoriesBox terminal

General technical data

designation / of the terminalTS1.2

type of electrical connection / with control wire tapNo

Mechanical Design

Net Weight167 g

Connections according IEC

for copper cable / stranded / minimum6 mm²

for copper cable / stranded / maximum120 mm²

minimum3 x 13mm x 0.5mm, 2 x 15.5mm x 0.8mm, 2 x 20mm x 1mm

maximum6 x 13mm x 0.5mm, 6 x 15.5mm x 0.8mm, 6 x 20mm x 1mm

stripped length19 mm

solid6 - 16 mm²: 6 Nm

stranded6 - 25 mm²: 6 Nm; 35 - 120 mm²: 10 Nm

finely stranded10 - 25 mm²: 6 Nm 35 - 95 mm²: 10Nm

finely stranded / with core end processing10 - 25 mm²: 6 Nm, 35 - 95 mm²: 10Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B75 °C

stripped length0.75 in

for copper cable / solid / minimum10 AWG

for copper cable / solid / maximum10 AWG

for copper cable / stranded / minimum10 AWG

for copper cable / stranded / maximum3/0 AWG

solid10 AWG : 105 lb-in

stranded10 - 4 AWG: 105 lb-in, 3 - 3/0 AWG: 140 lb-in
