How can I get a price quote for Siemens 3VA9133-0JF68?

You can request a fast quote for Siemens 3VA9133-0JF68 from Yılsa Engineering. Reference part number YLSC6XK3HGDTN9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9133-0JF68 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9133-0JF68 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9133-0JF68?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

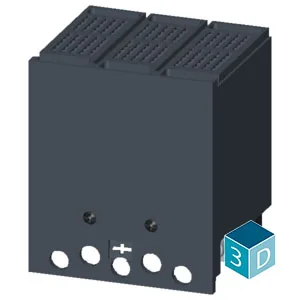

Siemens 3VA9133-0JF68

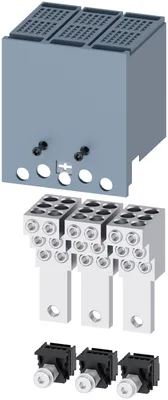

wire connector TA2.5 6 x 14 AWG...2 AWG for 6 cables 3 units; incl. terminal cover extended with holes for voltage testing; accessory for: 3VA51

SiemensMFR # 3VA9133-0JF68SKU # YLSC6XK3HGDTN9

product brand nameSENTRON

design of the productConnection method

accessoriesWire connector

designation / of the terminalTA2.5

Net Weight351 g

for copper cable / stranded / minimum1.5 mm²

Have questions?Chat on WhatsApp

About This Product

wire connector TA2.5 6 x 14 AWG...2 AWG for 6 cables 3 units; incl. terminal cover extended with holes for voltage testing; accessory for: 3VA51

Siemens 3VA9133-0JF68

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationCircular conductor terminal 6 cables 3 units

design of the productConnection method

accessoriesWire connector

General technical data

designation / of the terminalTA2.5

type of electrical connection / with control wire tapNo

Mechanical Design

Net Weight351 g

Connections according IEC

for copper cable / stranded / minimum1.5 mm²

for copper cable / stranded / maximum35 mm²

stripped length12 / 24 / 39.5 mm

solid1.5 mm²: 2.8 Nm, 2.5-10 mm²: 6.2 Nm, 16 mm²: 7 Nm

stranded1.5 mm²: 2.8 Nm; 2.5 - 10 mm²: 6.2 Nm; 16 - 35 mm²: 7 Nm

finely stranded1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm

finely stranded / with core end processing1.5 mm²: 2.8 Nm, 2.5 - 10 mm²: 6.2 Nm, 16 - 25 mm²: 7 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B75 °C

stripped length0.47 / 0.9 / 1.55 in

for copper cable / solid / minimum14 AWG

for copper cable / solid / maximum10 AWG

for copper cable / stranded / minimum14 AWG

for copper cable / stranded / maximum2 AWG

for aluminum cable / stranded / minimum8 AWG

for aluminum cable / stranded / maximum2 AWG

solid14-10 AWG: 55 lb-in

stranded14 - 8 AWG: 55 lb-in; 6 - 2 AWG: 62 lb-in
