How can I get a price quote for Siemens 3VA9133-0JA11?

You can request a fast quote for Siemens 3VA9133-0JA11 from Yılsa Engineering. Reference part number YLSTAPHMMU82WL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA9133-0JA11 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA9133-0JA11 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA9133-0JA11?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

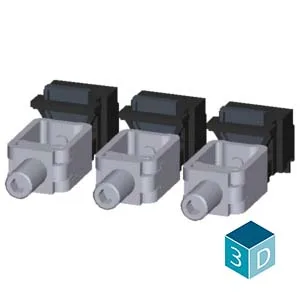

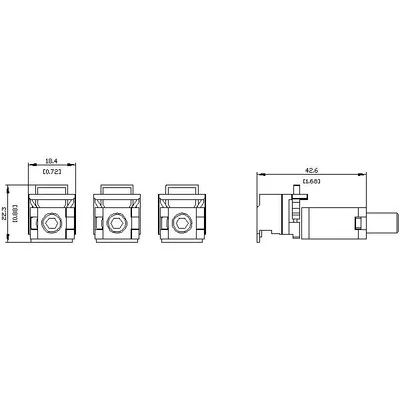

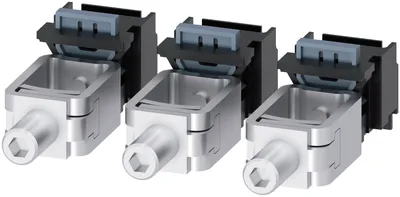

Siemens 3VA9133-0JA11

box terminal; 3 units accessory for: 3VA51

SiemensMFR # 3VA9133-0JA11SKU # YLSTAPHMMU82WL

product brand nameSENTRON

product designationbox terminal 3 units

design of the productConnection method

accessoriesBox terminal

designation / of the terminalTS1.1

Net Weight87 g

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA9133-0JA11 (box terminal; 3 units accessory for: 3VA51) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3VA9133-0JA11 — price, stock availability and technical specifications.

Siemens 3VA9133-0JA11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationbox terminal 3 units

design of the productConnection method

accessoriesBox terminal

General technical data

designation / of the terminalTS1.1

type of electrical connection / with control wire tapNo

Mechanical Design

Net Weight87 g

Connections according IEC

for copper cable / stranded / minimum1.5 mm²

for copper cable / stranded / maximum70 mm²

minimum3 x 9mm x 0.8mm, 3 x 13mm x 0.5mm

maximum9 x 9mm x 0.8mm, 6 x 13mm x 0.5mm

stripped length12 mm

solid1.5 - 16 mm²: 5 Nm

stranded'1.5 - 16 mm²: 5 Nm, 25 - 70 mm²: 8 Nm

finely stranded1.5 - 16 mm²: 5 Nm 25 - 50 mm²: 8 Nm

finely stranded / with core end processing1.5 - 16 mm²: 5 Nm, 25 - 50 mm²: 8 Nm

Connetctions according UL

permissible temperature / of connectable conductor / according to UL 486A-486B75 °C

stripped length0.5 in

for copper cable / solid / minimum14 AWG

for copper cable / solid / maximum10 AWG

for copper cable / stranded / minimum14 AWG

for copper cable / stranded / maximum3/0 AWG

solid14-10 AWG: 45 lb-in

stranded14 - 6 AWG: 45 lb-in; 4 - 3/0 AWG: 70 lb-in
