How can I get a price quote for Siemens 3VA6816-5HM31-2AA0?

You can request a fast quote for Siemens 3VA6816-5HM31-2AA0 from Yılsa Engineering. Reference part number YLSEHOZPGNIRY7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA6816-5HM31-2AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA6816-5HM31-2AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA6816-5HM31-2AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

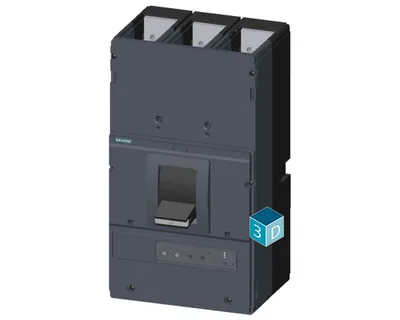

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

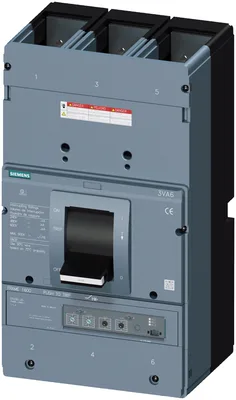

Siemens 3VA6816-5HM31-2AA0

circuit breaker 3VA6 UL frame 1600 breaking capacity class M 35kA @ 480 V 3-pole, line protection ETU330, LIG, In=1600A 100%-rated, overload protection Ir=600A - 1600A short circuit protection Ii=1,5-7,5 x In ground fault protection Ig=0,156 - 1 x In, tg=0,1/0,3s w/o connection

SiemensMFR # 3VA6816-5HM31-2AA0SKU # YLSEHOZPGNIRY7

product brand nameSENTRON

product designationMolded-case circuit breaker

design of the productSystem protection

design of the overcurrent releaseETU330

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6816-5HM31-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded-case circuit breaker

product designation / according to UL fileMPAE

design of the productSystem protection

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU330

protection function of the overcurrent releaseLIG

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value600 V

power loss [W] / maximum433 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole433 W

mechanical service life (operating cycles) / typical3 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V1 500

electrical endurance (operating cycles) / at AC-1 / at 690 V500

electrical endurance (operating cycles) / at 480 V1 500

electrical endurance (operating cycles) / at 600 V500

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionSummation current formation L + N-conductor

communication functionNo

other measurement functionNo

Net Weight3.133 kg

Current

marking / according to UL 489 / 100%-rated breakerYes

at 40 °C1 600 A

at 45 °C1 600 A

at 50 °C1 600 A

at 55 °C1 568 A

at 60 °C1 536 A

at 65 °C1 504 A

at 70 °C1 472 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerM

at 240 V65 kA

at 415 V50 kA

at 690 V20 kA

at 240 V35 kA

at 415 V25 kA

at 690 V15 kA

at 240 V143 kA

at 415 V105 kA

at 690 V63 kA

Switching capacity according to UL 489

at 240 V85 kA

at 480 V35 kA

at 600 V25 kA

Adjustable parameters

minimum600 A

maximum1 600 A

minimum2.5 s

maximum30 s

minimum2 400 A

maximum12 000 A

initial value320 A

full-scale value1 200 A

minimum0.1 s

maximum0.3 s

product function / grounding protectionYes

Mechanical Design

undervoltage releaseNo

trip indicatorNo

height [in]8.14 in

height206.9 mm

width [in]8.99 in

width228.4 mm

depth [in]16 in

depth406.4 mm

Connections

type of electrical connection / for main current circuitwithout terminals

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2F
