How can I get a price quote for Siemens 3VA6610-5JP36-0AA0?

You can request a fast quote for Siemens 3VA6610-5JP36-0AA0 from Yılsa Engineering. Reference part number YLSXBJIJJOK4VWL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA6610-5JP36-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA6610-5JP36-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA6610-5JP36-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

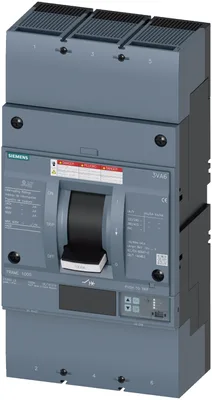

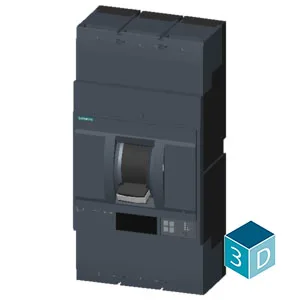

Siemens 3VA6610-5JP36-0AA0

circuit breaker 3VA6 UL Frame 1000 breaking capacity class M 35 kA @ 480 V 3-pole, line protection ETU550, LSI, In=1000 A overload protection Ir=400 A ...1000 A short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In neutral conductor protection optionally with ext. CT up to 160% cable connection on two sides

SiemensMFR # 3VA6610-5JP36-0AA0SKU # YLSXBJIJJOK4VWL

product brand nameSENTRON

product designationMolded-case circuit breaker

design of the productSystem protection

design of the overcurrent releaseETU550

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6610-5JP36-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded-case circuit breaker

product designation / according to UL fileMMNAE

design of the productSystem protection

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU550

protection function of the overcurrent releaseLSI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum330 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole110 W

mechanical service life (operating cycles) / typical10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V4 900

electrical endurance (operating cycles) / at AC-1 / at 690 V3 400

electrical endurance (operating cycles) / at 480 V4 900

electrical endurance (operating cycles) / at 600 V3 400

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYes

ground-fault monitoring versionwithout

communication functionYes

other measurement functionNo

Net Weight17.755 kg

Current

marking / according to UL 489 / 100%-rated breakerNo

at 40 °C1 000 A

at 45 °C940 A

at 50 °C880 A

at 55 °C840 A

at 60 °C800 A

at 65 °C750 A

at 70 °C700 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerM

at 240 V85 kA

at 415 V55 kA

at 690 V25 kA

at 240 V85 kA

at 415 V55 kA

at 690 V19 kA

at 240 V187 kA

at 415 V121 kA

at 690 V53 kA

Switching capacity according to UL 489

at 240 V100 kA

at 480 V35 kA

at 600 V25 kA

Adjustable parameters

minimum400 A

maximum1 000 A

minimum0.5 s

maximum25 s

minimum600 A

maximum10 000 A

minimum600 A

maximum10 000 A

minimum0.05 s

maximum0.5 s

minimum0.05 s

maximum0.5 s

minimum1 500 A

maximum10 000 A

minimum0 A

maximum0 A

design of the N-conductor protectionadjustable OFF; 20% to 160%

product function / grounding protectionNo

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]12.91 in

height328 mm

width [in]8.27 in

type of connectable conductor cross-sections / of the round conductor terminal / stranded4 x (4/0 - 500 kcmil)

width210 mm

depth [in]4.72 in

depth120 mm

Connections

arrangement of electrical connectors / for main current circuitFront connection

type of electrical connection / for main current circuitcircular conductor terminal on both sides

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
