How can I get a price quote for Siemens 3VA6580-6HN32-0AA0?

You can request a fast quote for Siemens 3VA6580-6HN32-0AA0 from Yılsa Engineering. Reference part number YLSJRQSJ2DCM3B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA6580-6HN32-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA6580-6HN32-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA6580-6HN32-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

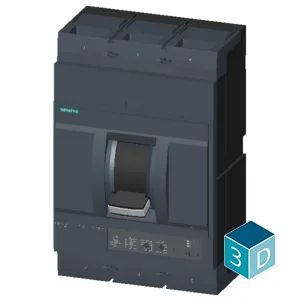

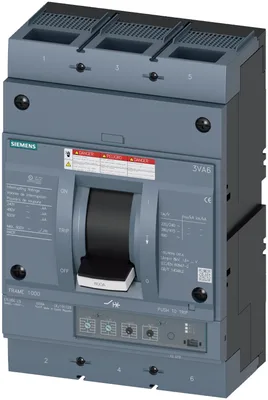

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3VA6580-6HN32-0AA0

circuit breaker 3VA6 UL Frame 800 breaking capacity class H 65 kA @ 480 V 3-pole, line protection ETU350, LSI, In=800 A overload protection Ir=315 A ...800 A short-circuit protection Isd=1.5... 10 x Ir, Ii=10 x In nut keeper kit

SiemensMFR # 3VA6580-6HN32-0AA0SKU # YLSJRQSJ2DCM3B

product brand nameSENTRON

product designationMolded-case circuit breaker

design of the productSystem protection

design of the overcurrent releaseETU350

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6580-6HN32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded-case circuit breaker

product designation / according to UL fileHMAE

design of the productSystem protection

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU350

protection function of the overcurrent releaseLSI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum231 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole77 W

mechanical service life (operating cycles) / typical10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V5 800

electrical endurance (operating cycles) / at AC-1 / at 690 V4 000

electrical endurance (operating cycles) / at 480 V5 800

electrical endurance (operating cycles) / at 600 V4 000

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionwithout

communication functionNo

other measurement functionNo

Net Weight14 kg

Current

marking / according to UL 489 / 100%-rated breakerNo

at 40 °C800 A

at 45 °C800 A

at 50 °C800 A

at 55 °C776 A

at 60 °C752 A

at 65 °C708 A

at 70 °C664 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerH

at 240 V110 kA

at 415 V85 kA

at 690 V35 kA

at 240 V110 kA

at 415 V85 kA

at 690 V19 kA

at 240 V242 kA

at 415 V187 kA

at 690 V74 kA

Switching capacity according to UL 489

at 240 V150 kA

at 480 V65 kA

at 600 V35 kA

Adjustable parameters

minimum315 A

maximum800 A

minimum0.5 s

maximum17 s

minimum1 200 A

maximum8 000 A

minimum1 200 A

maximum8 000 A

minimum0.0001 s

maximum0.4 s

minimum8 000 A

maximum8 000 A

minimum0.1 s

maximum0.3 s

minimum0 A

maximum0 A

product function / grounding protectionNo

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]12.91 in

height328 mm

width [in]8.27 in

width210 mm

depth [in]4.72 in

depth120 mm

Connections

arrangement of electrical connectors / for main current circuitFront connection

type of electrical connection / for main current circuitnut keeper kit on both ends

type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 4 mm

type of connectable conductor cross-sections / for flat-bar terminal connection / maximum50 x 28 mm

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
