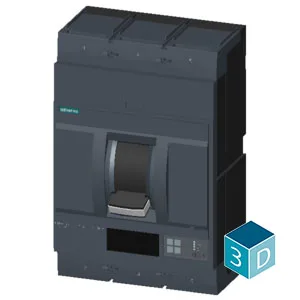

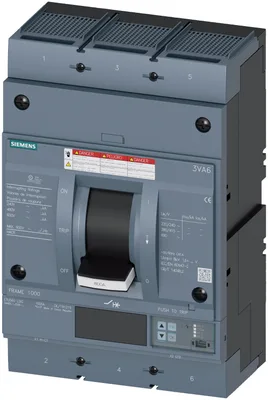

Siemens 3VA6560-7JQ36-2AA0

circuit breaker 3VA6 UL Frame 800 breaking capacity class C 100 kA @ 480 V 3-pole, line protection ETU560, LSIG, In=600 A overload protection, 100% rated Ir=240 A ...600 A short-circuit protection Isd=0.6..12x In, Ii=1.5..12x In neutral conductor protection optionally with ext. CT up to 160% ground-fault protection IG=0.2... 1xIn, tg=0.05-0.8s cable connection on two sides

SiemensMFR # 3VA6560-7JQ36-2AA0SKU # YLS7GBJZQF4FSSI

product brand nameSENTRON

product designationMolded-case circuit breaker

design of the productSystem protection

design of the overcurrent releaseETU560

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6560-7JQ36-2AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded-case circuit breaker

product designation / according to UL fileCMAE

design of the productSystem protection

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU560

protection function of the overcurrent releaseLSIG

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum151 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole50.33 W

mechanical service life (operating cycles) / typical10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V5 100

electrical endurance (operating cycles) / at AC-1 / at 690 V3 500

electrical endurance (operating cycles) / at 480 V5 100

electrical endurance (operating cycles) / at 600 V3 500

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYes

ground-fault monitoring versionSummation current formation L-conductor

communication functionYes

other measurement functionNo

Net Weight15.355 kg

Current

marking / according to UL 489 / 100%-rated breakerYes

at 40 °C600 A

at 45 °C600 A

at 50 °C600 A

at 55 °C600 A

at 60 °C600 A

at 65 °C555 A

at 70 °C510 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerC

at 240 V200 kA

at 415 V110 kA

at 690 V35 kA

at 240 V150 kA

at 415 V85 kA

at 690 V19 kA

at 240 V440 kA

at 415 V242 kA

at 690 V74 kA

Switching capacity according to UL 489

at 240 V200 kA

at 480 V100 kA

at 600 V50 kA

Adjustable parameters

minimum250 A

maximum600 A

minimum0.5 s

maximum25 s

minimum360 A

maximum7 200 A

minimum360 A

maximum7 200 A

minimum0.05 s

maximum0.5 s

minimum0.05 s

maximum0.5 s

minimum900 A

maximum7 200 A

initial value120 A

full-scale value600 A

minimum0.05 s

maximum0.8 s

minimum120 A

maximum600 A

minimum0.05 s

maximum0.8 s

minimum0 A

maximum0 A

design of the N-conductor protectionadjustable OFF; 20% to 160%

product function / grounding protectionYes

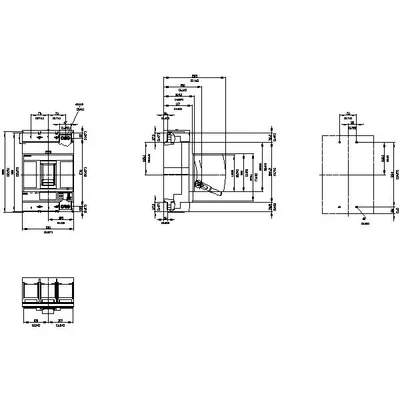

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]12.91 in

height328 mm

width [in]8.27 in

type of connectable conductor cross-sections / of the round conductor terminal / stranded2 x (4/0 - 600 kcmil)

width210 mm

depth [in]4.72 in

depth120 mm

Connections

arrangement of electrical connectors / for main current circuitFront connection

type of electrical connection / for main current circuitcircular conductor terminal on both sides

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
