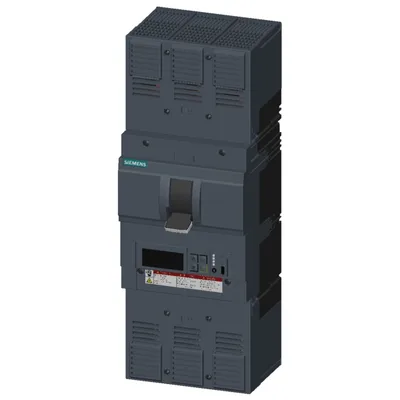

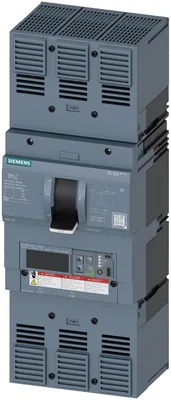

Siemens 3VA6460-8TP36-0AA0
circuit breaker 3VA6 plus UL Frame 600 breaking capacity class L Icu=150 kA @ 480 V 3-pole, line protection ETU950, LSI, In=600 A Bluetooth, wireless communication, measurement function display overload protection Ir=120 A ... 600 A short-circuit protection Isd=0.6..9x In, Ii=1.5..9x In neutral conductor protection optionally with ext. CT; up to 160% condition monitoring extended protection function terminal connection
product brand nameSENTRON
product designationMolded case circuit breaker
design of the overcurrent releaseETU950
number of poles3
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
About This Product
circuit breaker 3VA6 plus UL Frame 600 breaking capacity class L Icu=150 kA @ 480 V 3-pole, line protection ETU950, LSI, In=600 A Bluetooth, wireless communication, measurement function display overload protection Ir=120 A ... 600 A short-circuit protection Isd=0.6..9x In, Ii=1.5..9x In neutral conductor protection optionally with ext. CT; up to 160% condition monitoring extended protection function terminal connection
Siemens 3VA6460-8TP36-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationMolded case circuit breaker
product designation / according to UL fileLLAE
design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes
design of the overcurrent releaseETU950
protection function of the overcurrent releaseLSI
number of poles3
General technical data
insulation voltage / rated value800 V
operating voltage / at AC / rated value690 V
power loss [W] / maximum151 W
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole50.33 W
mechanical service life (operating cycles) / typical20 000
electrical endurance (operating cycles) / at AC-1 / at 380/415 V4 000
electrical endurance (operating cycles) / at AC-1 / at 690 V3 500
electrical endurance (operating cycles) / at 480 V4 000
electrical endurance (operating cycles) / at 600 V3 500
product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo
ground-fault monitoring versionwithout
communication functionYes
other measurement functionYes
Net Weight5.1 kg
Current
marking / according to UL 489 / 100%-rated breakerNo
at 40 °C600 A
at 45 °C600 A
at 50 °C570 A
at 55 °C540 A
at 60 °C510 A
at 65 °C480 A
at 70 °C450 A
Switching capacity according to IEC 60947
switching capacity class of the circuit breakerL
at 240 V200 kA
at 415 V150 kA
at 690 V6 kA
at 240 V200 kA
at 415 V150 kA
at 690 V6 kA
at 240 V440 kA
at 415 V330 kA
at 690 V9 kA
Switching capacity according to UL 489
at 240 V200 kA
at 480 V150 kA
at 600 V50 kA
Adjustable parameters
design of the N-conductor protectionadjustable OFF; 20% to 100%
Mechanical Design
undervoltage releaseNo
voltage triggerNo
trip indicatorNo

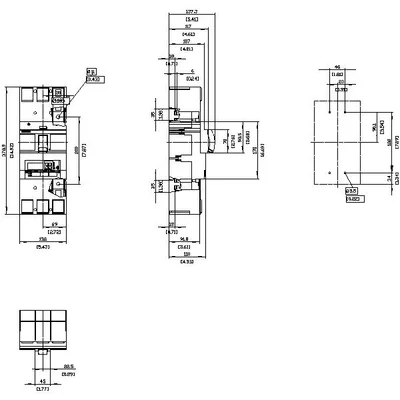

height [in]9.76 in
height248 mm
width [in]5.43 in
type of connectable conductor cross-sections / of the round conductor terminal / stranded2 x (2/0 - 600 kcmil)
width138 mm
depth [in]4.33 in
depth110 mm
Connections
arrangement of electrical connectors / for main current circuitfront connection
type of electrical connection / for main current circuitcircular conductor terminal on both sides
Auxiliary circuit
number of CO contacts / for auxiliary contacts0
Accessories
product extension / optional / motor driveYes
Environmental conditions
protection class IP / on the frontIP40
during operation / minimum-25 °C
during operation / maximum70 °C
during storage / minimum-40 °C
during storage / maximum80 °C
reference code / according to IEC 81346-2Q
