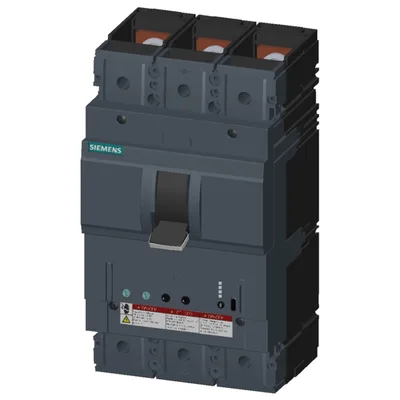

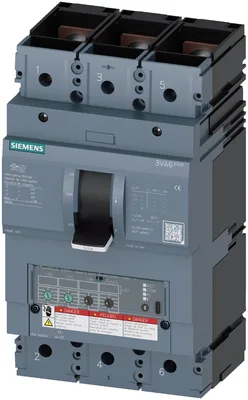

Siemens 3VA6440-8LM32-0AA0

circuit breaker 3VA6 plus UL Frame 600 breaking capacity class L Icu=150 kA @ 480 V 3-pole, line protection ETU430, LIG, In=400 A Bluetooth, wireless rotary coding switch e.SET overload protection Ir=80 A ... 400 A short-circuit protection Ii=1.5...12 x In G protection/alarm Ig=0.2... 1 x In, tg=0.1 / 0.3 s nut keeper kit

SiemensMFR # 3VA6440-8LM32-0AA0SKU # YLSWD29Y3RMMS

product brand nameSENTRON

product designationMolded case circuit breaker

design of the overcurrent releaseETU430

number of poles3

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6440-8LM32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

product designation / according to UL fileLLAE

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU430

protection function of the overcurrent releaseLIG

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum70 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole23.33 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V4 000

electrical endurance (operating cycles) / at AC-1 / at 690 V3 500

electrical endurance (operating cycles) / at 480 V4 000

electrical endurance (operating cycles) / at 600 V3 500

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versiontotal current formation L conductor

communication functionNo

other measurement functionNo

Net Weight5.1 kg

Current

marking / according to UL 489 / 100%-rated breakerNo

at 40 °C400 A

at 45 °C400 A

at 50 °C400 A

at 55 °C400 A

at 60 °C400 A

at 65 °C400 A

at 70 °C400 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerL

at 240 V200 kA

at 415 V150 kA

at 690 V6 kA

at 240 V200 kA

at 415 V150 kA

at 690 V6 kA

at 240 V440 kA

at 415 V330 kA

at 690 V9 kA

Switching capacity according to UL 489

at 240 V200 kA

at 480 V150 kA

at 600 V50 kA

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum80 A

maximum400 A

minimum0.5 s

maximum17 s

minimum600 A

maximum4 800 A

initial value80 A

full-scale value400 A

minimum0.1 s

maximum0.3 s

design of the N-conductor protectionadjustable OFF; 20% to 160%

product function / grounding protectionYes

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]9.76 in

height248 mm

width [in]5.43 in

width138 mm

depth [in]4.33 in

depth110 mm

Connections

arrangement of electrical connectors / for main current circuitfront connection

type of electrical connection / for main current circuitnut keeper kit on both ends

type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 1 mm

type of connectable conductor cross-sections / for flat-bar terminal connection / maximum35 x 10 mm

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Silver

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
