How can I get a price quote for Siemens 3VA6440-5SP36-0AA1?

You can request a fast quote for Siemens 3VA6440-5SP36-0AA1 from Yılsa Engineering. Reference part number YLSBL6SLCLWTZB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA6440-5SP36-0AA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA6440-5SP36-0AA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA6440-5SP36-0AA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

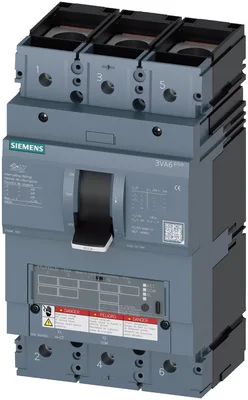

Siemens 3VA6440-5SP36-0AA1

circuit breaker 3VA6 plus UL Frame 600 breaking capacity class M Icu=35 kA @ 480 V 3-pole, line protection ETU750, LSI, In=400 A without Bluetooth, without wireless communication, measurement function overload protection Ir=80 A ... 400 A short-circuit protection Isd=0.6..10x In, Ii=1.5..12x In neutral conductor protection optionally with ext. CT; up to 160% condition monitoring terminal connection

SiemensMFR # 3VA6440-5SP36-0AA1SKU # YLSBL6SLCLWTZB

product brand nameSENTRON

product designationMolded case circuit breaker

design of the overcurrent releaseETU750

number of poles3

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6440-5SP36-0AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

product designation / according to UL fileMLAE

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU750

protection function of the overcurrent releaseLSI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum70 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole23.33 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V4 000

electrical endurance (operating cycles) / at AC-1 / at 690 V3 500

electrical endurance (operating cycles) / at 480 V4 000

electrical endurance (operating cycles) / at 600 V3 500

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionwithout

communication functionYes

other measurement functionYes

Net Weight5.1 kg

Current

marking / according to UL 489 / 100%-rated breakerNo

at 40 °C400 A

at 45 °C400 A

at 50 °C400 A

at 55 °C400 A

at 60 °C400 A

at 65 °C400 A

at 70 °C400 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerM

at 240 V85 kA

at 415 V55 kA

at 690 V6 kA

at 240 V85 kA

at 415 V55 kA

at 690 V6 kA

at 240 V187 kA

at 415 V121 kA

at 690 V9 kA

Switching capacity according to UL 489

at 240 V100 kA

at 480 V35 kA

at 600 V18 kA

Adjustable parameters

design of the N-conductor protectionadjustable OFF; 20% to 160%

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]9.76 in

height248 mm

width [in]5.43 in

type of connectable conductor cross-sections / of the round conductor terminal / stranded1 x (1 AWG - 600 kcmil)

width138 mm

depth [in]4.33 in

depth110 mm

Connections

arrangement of electrical connectors / for main current circuitfront connection

type of electrical connection / for main current circuitcircular conductor terminal on both sides

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
