How can I get a price quote for Siemens 3VA6340-7HM41-0AA0?

You can request a fast quote for Siemens 3VA6340-7HM41-0AA0 from Yılsa Engineering. Reference part number YLS0YGJC4MNSFBI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA6340-7HM41-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA6340-7HM41-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA6340-7HM41-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

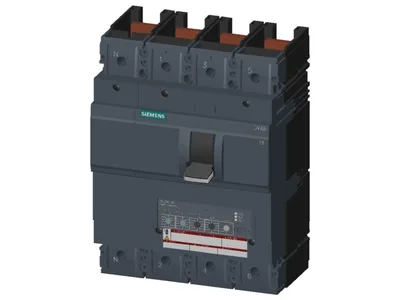

Siemens 3VA6340-7HM41-0AA0

circuit breaker 3VA6 UL Frame 400 breaking capacity class C 100 kA @ 480 V 4-pole, line protection ETU330, LIG, In=400 A overload protection Ir=160 A...400 A short-circuit protection Ii=1.5...10 x In neutral conductor protection adjustable (OFF, 50%, 100%) ground-fault protection Ig=0.2...1 x In= tg=0.1/0.3s without connection

SiemensMFR # 3VA6340-7HM41-0AA0SKU # YLS0YGJC4MNSFBI

product brand nameSENTRON

product designationMolded-case circuit breaker

design of the productSystem protection

design of the overcurrent releaseETU330

number of poles4

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA6340-7HM41-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded-case circuit breaker

product designation / according to UL fileCJAE

design of the productSystem protection

design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type)Yes

design of the overcurrent releaseETU330

protection function of the overcurrent releaseLIG

number of poles4

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum70 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole23.33 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V6 000

electrical endurance (operating cycles) / at AC-1 / at 690 V4 200

electrical endurance (operating cycles) / at 480 V6 000

electrical endurance (operating cycles) / at 600 V4 200

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionSummation current formation L + N-conductor

communication functionNo

other measurement functionNo

Net Weight6.9 kg

Current

marking / according to UL 489 / 100%-rated breakerNo

at 40 °C400 A

at 45 °C400 A

at 50 °C400 A

at 55 °C385 A

at 60 °C370 A

at 65 °C355 A

at 70 °C340 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerC

at 240 V150 kA

at 415 V110 kA

at 690 V5 kA

at 240 V150 kA

at 415 V110 kA

at 690 V5 kA

at 240 V330 kA

at 415 V242 kA

at 690 V7.5 kA

Switching capacity according to UL 489

at 240 V200 kA

at 480 V100 kA

at 600 V35 kA

Adjustable parameters

minimum150 A

maximum400 A

minimum0.5 s

maximum17 s

minimum600 A

maximum4 000 A

initial value80 A

full-scale value400 A

minimum0.1 s

maximum0.3 s

minimum200 A

maximum400 A

design of the N-conductor protectionadjustable OFF; 50%; 100%

product function / grounding protectionYes

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]9.76 in

height248 mm

width [in]7.24 in

width184 mm

depth [in]4.33 in

depth110 mm

Connections

arrangement of electrical connectors / for main current circuitWithout connection

type of electrical connection / for main current circuitWithout

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] / total495 kg

global warming potential [CO2 eq] / during manufacturing28.7 kg

global warming potential [CO2 eq] / during operation470 kg

global warming potential [CO2 eq] / after end of life-4.07 kg

Siemens eco profile (SEP)Siemens EcoTech

reference code / according to IEC 81346-2Q
