How can I get a price quote for Siemens 3VA2612-6KQ42-0AA0?

You can request a fast quote for Siemens 3VA2612-6KQ42-0AA0 from Yılsa Engineering. Reference part number YLSF3I4EZ6TD17M. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA2612-6KQ42-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA2612-6KQ42-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA2612-6KQ42-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

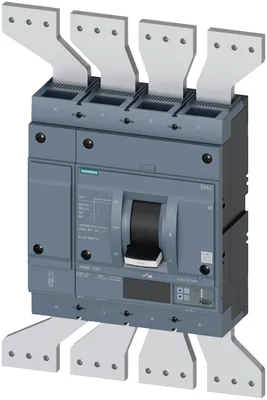

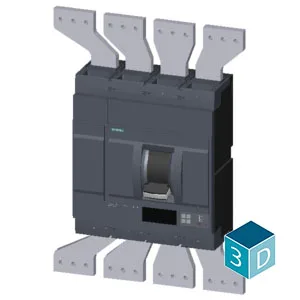

Siemens 3VA2612-6KQ42-0AA0

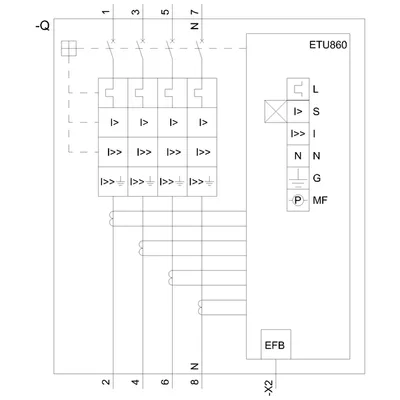

“Attention: if used with Plug-In, please state “with Plug-In” in N-text (COI3-text) in purchase order.” 1250 breaking capacity class H Icu=85 kA @ 415 V 4-pole, line protection ETU860, LSIG, In=1250 A overload protection Ir=500 A ...1250 A short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In neutral conductor protection adjustable (OFF, up to 100%) ground-fault protection, can be switched off Ig=0.2... 1 x In, tg=0.05-0.8s bus connectors broadened

SiemensMFR # 3VA2612-6KQ42-0AA0SKU # YLSF3I4EZ6TD17M

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseETU860

number of poles4

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA2612-6KQ42-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseETU860

protection function of the overcurrent releaseLSIG

number of poles4

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum516 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole172 W

mechanical service life (operating cycles) / typical10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V4 600

electrical endurance (operating cycles) / at AC-1 / at 690 V3 200

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionSummation current formation L + N conductor

communication functionYes

other measurement functionYes

Net Weight28.24 kg

Current

at 40 °C1 250 A

at 45 °C1 250 A

at 50 °C1 250 A

at 55 °C1 187 A

at 60 °C1 125 A

at 65 °C1 000 A

at 70 °C875 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerH

at 240 V110 kA

at 415 V85 kA

at 440 V85 kA

at 500 V55 kA

at 690 V35 kA

at 240 V110 kA

at 415 V85 kA

at 440 V70 kA

at 500 V55 kA

at 690 V19 kA

at 240 V242 kA

at 415 V187 kA

at 440 V187 kA

at 500 V121 kA

at 690 V73.5 kA

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum500 A

maximum1 250 A

minimum0.5 s

maximum25 s

minimum750 A

maximum12 500 A

minimum750 A

maximum12 500 A

minimum0.05 s

maximum0.5 s

minimum0.05 s

maximum0.5 s

minimum1 875 A

maximum12 500 A

initial value250 A

full-scale value1 250 A

minimum0.05 s

maximum0.8 s

minimum250 A

maximum1 250 A

minimum0.05 s

maximum0.8 s

minimum250 A

maximum1 250 A

design of the N-conductor protectionadjustable OFF; 20% to 100%

product function / grounding protectionYes

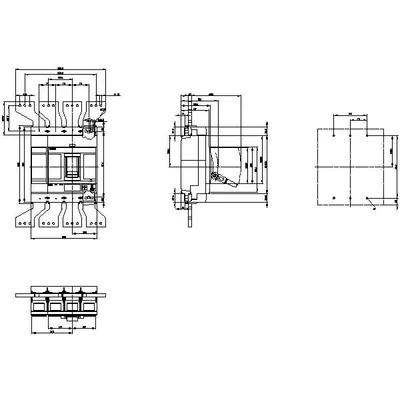

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]12.6 in

height320 mm

width [in]11.02 in

width280 mm

depth [in]4.72 in

depth120 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuitboth sides processed busbar connection piece

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
