How can I get a price quote for Siemens 3VA2563-5MN32-0AA0?

You can request a fast quote for Siemens 3VA2563-5MN32-0AA0 from Yılsa Engineering. Reference part number CEY-937FC780B973. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA2563-5MN32-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA2563-5MN32-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA2563-5MN32-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

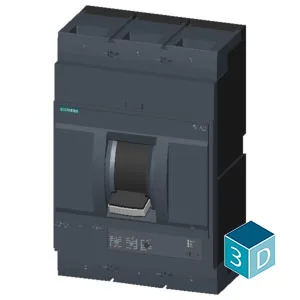

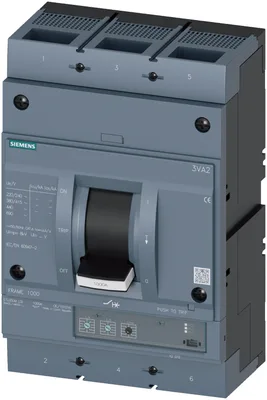

Siemens 3VA2563-5MN32-0AA0

“Attention: if used with Plug-In, please state “with Plug-In” in N-text (COI3-text) in purchase order.” 1000 breaking capacity class M Icu=55 kA @ 415 V 3-pole, motor protection ETU350M, LSI, In=630 A overload protection Ir=250 A...630 A short-circuit protection Isd=3...15 x Ir, Ii=15 x In nut keeper kit

SiemensMFR # 3VA2563-5MN32-0AA0SKU # CEY-937FC780B973

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productMotor protection

design of the overcurrent releaseETU350M

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA2563-5MN32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productMotor protection

design of the overcurrent releaseETU350M

protection function of the overcurrent releaseLSI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

operating power / at AC-3 / at 400 V315 000 W

operating power / at AC-3 / at 230 V160 000 W

power loss [W] / maximum132 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole44 W

mechanical service life (operating cycles) / typical10 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V4 600

electrical endurance (operating cycles) / at AC-1 / at 690 V3 200

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionWithout

communication functionNo

phase failure detectionYes

other measurement functionNo

Net Weight13.381 kg

Current

at 40 °C630 A

at 45 °C630 A

at 50 °C630 A

at 55 °C630 A

at 60 °C630 A

at 65 °C630 A

at 70 °C630 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerM

at 240 V85 kA

at 415 V55 kA

at 440 V55 kA

at 500 V36 kA

at 690 V25 kA

at 240 V85 kA

at 415 V55 kA

at 440 V55 kA

at 500 V36 kA

at 690 V19 kA

at 240 V187 kA

at 415 V121 kA

at 440 V121 kA

at 500 V75.6 kA

at 690 V52.5 kA

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum250 A

maximum630 A

minimum4 s

maximum17 s

minimum750 A

maximum9 450 A

minimum0.03 s

maximum0.03 s

minimum9 450 A

maximum9 450 A

minimum0 A

maximum0 A

product function / grounding protectionNo

adjustable trip class (Tc CLASS)10A, 10E, 20E

minimum4 s

maximum17 s

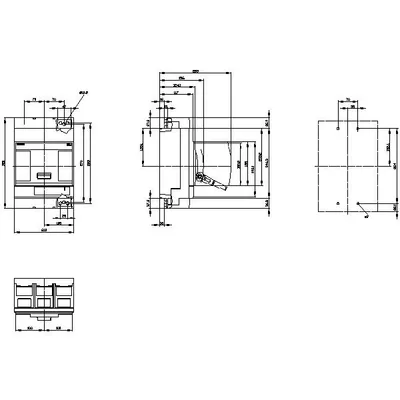

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]12.6 in

height320 mm

width [in]8.27 in

width210 mm

depth [in]4.72 in

depth120 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuiton both sides nut keeper kit

type of connectable conductor cross-sections / for flat-bar terminal connection / minimum20 x 4 mm

type of connectable conductor cross-sections / for flat-bar terminal connection / maximum50 x 28 mm

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)silver

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveNo

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q
