How can I get a price quote for Siemens 3VA2116-6TQ32-0AA1?

You can request a fast quote for Siemens 3VA2116-6TQ32-0AA1 from Yılsa Engineering. Reference part number YLSHXWZZ9ST0JUN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA2116-6TQ32-0AA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA2116-6TQ32-0AA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA2116-6TQ32-0AA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

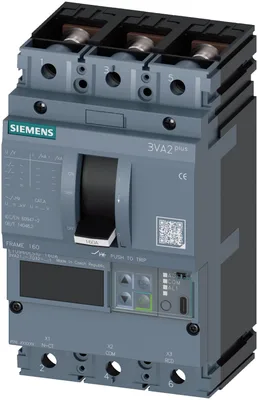

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3VA2116-6TQ32-0AA1

circuit breaker 3VA2 plus IEC Frame 160 breaking capacity class H Icu=85 kA @ 415 V 3-pole, line protection ETU960, LSIG, In=160 A without Bluetooth, without wireless communication, measurement function display overload protection Ir=32 A ... 160 A short-circuit protection Isd=0.6..10x In, Ii=1.5..10x In neutral conductor protection optionally with ext. CT; up to 160% G protection/alarm, can be switched off Ig=0.2... 1 x In, tg=0.05-0.8 s condition monitoring enhanced protective function nut keeper kit

SiemensMFR # 3VA2116-6TQ32-0AA1SKU # YLSHXWZZ9ST0JUN

product brand nameSENTRON

product designationMolded case circuit breaker

design of the overcurrent releaseETU960

number of poles3

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA2116-6TQ32-0AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the overcurrent releaseETU960

protection function of the overcurrent releaseLSIG

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum25.5 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole8.5 W

mechanical service life (operating cycles) / typical25 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V14 000

electrical endurance (operating cycles) / at AC-1 / at 690 V9 800

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofYes

ground-fault monitoring versiontotal current formation L conductor

communication functionYes

other measurement functionYes

Net Weight2.3 kg

Current

at 40 °C160 A

at 45 °C160 A

at 50 °C160 A

at 55 °C160 A

at 60 °C160 A

at 65 °C160 A

at 70 °C160 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerH

at 240 V110 kA

at 415 V85 kA

at 440 V85 kA

at 500 V55 kA

at 690 V2.5 kA

at 240 V110 kA

at 415 V85 kA

at 440 V85 kA

at 500 V55 kA

at 690 V2.5 kA

at 240 V242 kA

at 415 V187 kA

at 440 V187 kA

at 500 V121 kA

at 690 V3.6 kA

Adjustable parameters

design of the N-conductor protectionadjustable OFF; 20% to 160%

product function / grounding protectionYes

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]7.13 in

height181 mm

width [in]4.13 in

width105 mm

depth [in]3.39 in

depth86 mm

Connections

arrangement of electrical connectors / for main current circuitfront connection

type of electrical connection / for main current circuitnut keeper kit on two sides

type of connectable conductor cross-sections / for flat-bar terminal connection / minimum13 x 1 mm

type of connectable conductor cross-sections / for flat-bar terminal connection / maximum25 x 8 mm

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)tin

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Tin

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

reference code / according to IEC 81346-2Q

Product information

EAN4047624570935

Product family3VA2 plus Molded Case Circuit Breakers

Life cycle statusQ.P.M280

Commodity code85362090

Delivery and logistics

Country of originCzech Republic

Standard delivery time10 Day/Days

ReturnableYes

Net weight2.3 Kg

Packaging dimensions (L x W x H)200 x 134 x 145 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsYes

Export control regulationsAL : N / ECCN : EAR99

Environment and compliance

RoHS conformitySince: 01-04-24

WEEE category5

REACH informationLead CAS-No. 7439-92-1 > 0,1 % (w / w)

Siemens catalog

Product groupX0OC

Catalog IDLV10

Group codeP360

Product classRestricted, and/or can only be reused over the medium-term
