How can I get a price quote for Siemens 3VA1180-5EF32-0AA0?

You can request a fast quote for Siemens 3VA1180-5EF32-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B038C812. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3VA1180-5EF32-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3VA1180-5EF32-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3VA1180-5EF32-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

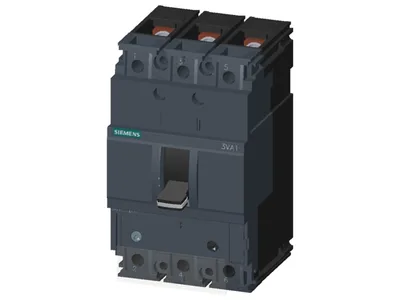

Siemens 3VA1180-5EF32-0AA0

circuit breaker 3VA1 IEC Frame 160 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection TM240, ATAM, In=80 A overload protection Ir=56 A...80 A short-circuit protection Ii=5...10 x In nut keeper kit

SiemensMFR # 3VA1180-5EF32-0AA0SKU # CEY-8EF3B038C812

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM240

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA1180-5EF32-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM240

protection function of the overcurrent releaseLI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at DC / rated value500 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum19.2 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole6.4 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V9 000

electrical endurance (operating cycles) / at AC-1 / at 690 V6 300

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionWithout

communication functionNo

other measurement functionNo

Net Weight916 g

Current

at 40 °C80 A

at 45 °C80 A

at 50 °C80 A

at 55 °C78 A

at 60 °C77 A

at 65 °C75 A

at 70 °C74 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerM

at 240 V85 kA

at 415 V55 kA

at 440 V36 kA

at 500 V10 kA

at 690 V10 kA

at 240 V85 kA

at 415 V55 kA

at 440 V36 kA

at 500 V5 kA

at 690 V5 kA

at 240 V187 kA

at 415 V121 kA

at 440 V75.6 kA

at 500 V17 kA

at 690 V17 kA

design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum56 A

maximum80 A

minimum1 s

maximum1 s

minimum400 A

maximum800 A

minimum0 A

maximum0 A

product function / grounding protectionNo

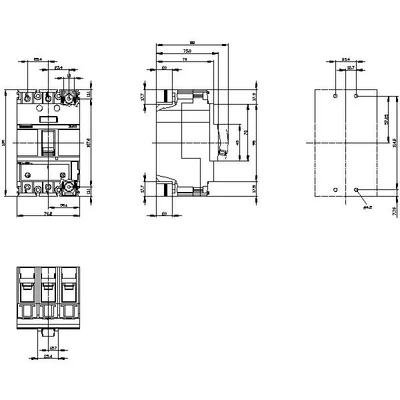

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]5.12 in

height130 mm

width [in]3 in

width76.2 mm

depth [in]2.76 in

depth70 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuitnut keeper kit on both ends

type of connectable conductor cross-sections / for flat-bar terminal connection / minimum12 x 1 mm

type of connectable conductor cross-sections / for flat-bar terminal connection / maximum17 x 6,5 mm

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Tin

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] / total190 kg

global warming potential [CO2 eq] / during manufacturing4.67 kg

global warming potential [CO2 eq] / during operation186 kg

global warming potential [CO2 eq] / after end of life-0.826 kg

reference code / according to IEC 81346-2Q

Accessories 58

Genuine accessories that can be used with the Siemens 3VA1180-5EF32-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3VA9053-0SB10	Aksesuar · Accessories
3VA9988-0BA24	Aksesuar · Accessories
3VA9988-0BA25	Aksesuar · Accessories
3VA9988-0BL20	Aksesuar · Accessories
3VA9988-0BL30	Aksesuar · Accessories
3VA9988-0BL31	Aksesuar · Accessories
3VA9988-0BL32	Aksesuar · Accessories
3VA9988-0BL33	Aksesuar · Accessories
3VA9257-0GX01	Aksesuar · Accessories
3VA9257-0GX10	Aksesuar · Accessories
3VA9988-0BA23	Aksesuar · Accessories
3VA9113-0RL20	Aksesuar · Accessories
3VA9113-0RS20	Aksesuar · Accessories
3VA9113-0RL21	Aksesuar · Accessories
3VA9988-0BA22	Aksesuar · Accessories
3VA9988-0BA20	Aksesuar · Accessories
3VA9153-0JF60	Aksesuar · Accessories
3VA9157-0EK27	Aksesuar · Accessories
3VA9908-0BB10	Aksesuar · Accessories
3VA9908-0BB11	Aksesuar · Accessories
3VA9908-0BB12	Aksesuar · Accessories
3VA9908-0BB13	Aksesuar · Accessories
3VA9908-0BB14	Aksesuar · Accessories
3VA9908-0BB15	Aksesuar · Accessories
3VA9988-0BA21	Aksesuar · Accessories
3VA9908-0BB16	Aksesuar · Accessories
3VA9908-0BB21	Aksesuar · Accessories
3VA9908-0BB22	Aksesuar · Accessories
3VA9908-0BB23	Aksesuar · Accessories
3VA9908-0BB24	Aksesuar · Accessories
3VA9908-0BB25	Aksesuar · Accessories
3VA9908-0BB26	Aksesuar · Accessories
3VA9908-0BB27	Aksesuar · Accessories
3VA9908-0BD11	Aksesuar · Accessories
3VA9908-0BD13	Aksesuar · Accessories
3VA9908-0BB20	Aksesuar · Accessories
3VA9153-0JC12	Aksesuar · Accessories
3VA9150-0WC00	Aksesuar · Accessories
3VA9113-0KP00	Aksesuar · Accessories
3VA9157-0EK25	Aksesuar · Accessories
3VA9157-0FK25	Aksesuar · Accessories
3VA9157-0FK27	Aksesuar · Accessories
3VA9157-0PK11	Aksesuar · Accessories
3VA9157-0PK15	Aksesuar · Accessories
3VA9157-0PK17	Aksesuar · Accessories
3VA9157-0EK23	Aksesuar · Accessories
3VA9158-0VF30	Aksesuar · Accessories
3VA9287-0GA80	Aksesuar · Accessories
3VA9987-0GL30	Aksesuar · Accessories
3VA9988-0AA12	Aksesuar · Accessories
3VA9988-0AA13	Aksesuar · Accessories
3VA9988-0AB12	Aksesuar · Accessories
3VA9988-0AB13	Aksesuar · Accessories
3VA9988-0BF21	Aksesuar · Accessories
3VA9988-0BF22	Aksesuar · Accessories
3VA9988-0BF23	Aksesuar · Accessories
3VA9187-0SH10	Aksesuar · Accessories
3VA9988-0BM10	Aksesuar · Accessories
