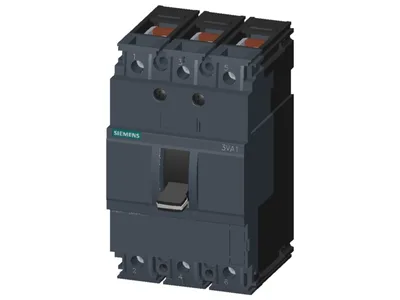

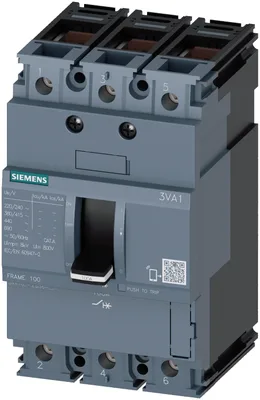

Siemens 3VA1010-2ED36-0BA0

circuit breaker 3VA1 IEC Frame 100 breaking capacity class B Icu=16 kA @ 415 V 3-pole, line protection TM210, FTFM, In=100 A overload protection Ir=100 A permanently set short-circuit protection Ii=10 x In terminal connection undervoltage release (UVR) 24 V DC

SiemensMFR # 3VA1010-2ED36-0BA0SKU # CEY-8EF3B038D9B1

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM210

number of poles3

design of the auxiliary releaseundervoltage release (UVR)

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA1010-2ED36-0BA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM210

protection function of the overcurrent releaseLI

number of poles3

design of the auxiliary releaseundervoltage release (UVR)

General technical data

insulation voltage / rated value800 V

operating voltage / at DC / rated value500 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum27.5 W

power loss [W] / for rated value of the current / at AC / in hot operating state / per pole9.16 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V9 000

electrical endurance (operating cycles) / at AC-1 / at 690 V6 300

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionWithout

communication functionNo

other measurement functionNo

Net Weight0.9 kg

Current

at 40 °C100 A

at 45 °C100 A

at 50 °C100 A

at 55 °C98 A

at 60 °C96 A

at 65 °C94 A

at 70 °C91 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerB

at 240 V25 kA

at 415 V16 kA

at 440 V8 kA

at 500 V5 kA

at 690 V5 kA

at 240 V25 kA

at 415 V16 kA

at 440 V8 kA

at 500 V5 kA

at 690 V5 kA

at 240 V52.5 kA

at 415 V32 kA

at 440 V13.6 kA

at 500 V7.5 kA

at 690 V7.5 kA

design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum100 A

maximum100 A

minimum1 s

maximum1 s

minimum1 000 A

maximum1 000 A

minimum0 A

maximum0 A

product function / grounding protectionNo

Mechanical Design
