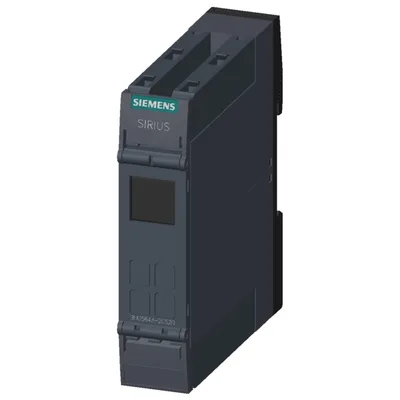

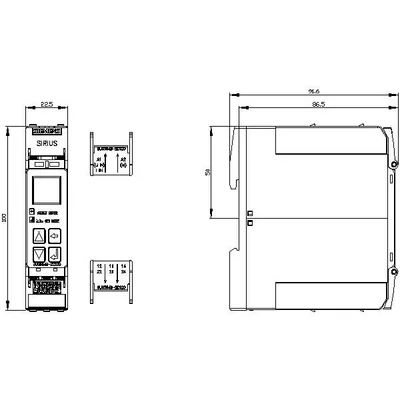

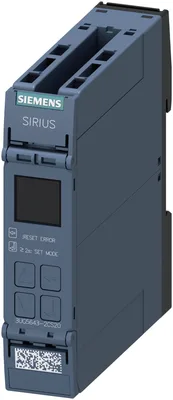

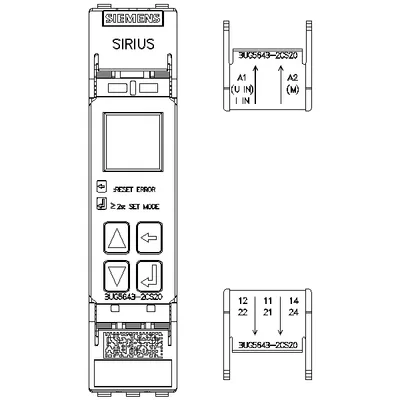

Siemens 3UG5643-2CS20

digital monitoring relay current, active current, voltage, cos-phi and power monitoring 90 to 690 V AC with internal power supply 0.05 to 10 A 90 .. 690 V AC, 50 .. 60 Hz ON delay and tripping delay 0.1..999.9 s 2 changeover contacts spring-loaded terminal

SiemensMFR # 3UG5643-2CS20SKU # YLSBTUXXPFS66DM

product brand nameSIRIUS

product type designation3UG5

design of the displayLCD

power loss [W] maximum2 W

power loss [V∙A] maximum5.1 V·A

with degree of pollution 2 rated value690 V
