How can I get a price quote for Siemens 3UG5533-2AL30?

You can request a fast quote for Siemens 3UG5533-2AL30 from Yılsa Engineering. Reference part number YLSWCBW036YGBKN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3UG5533-2AL30 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3UG5533-2AL30 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3UG5533-2AL30?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

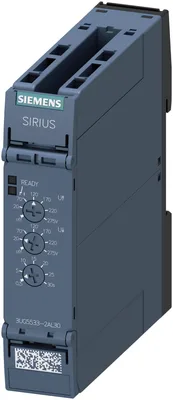

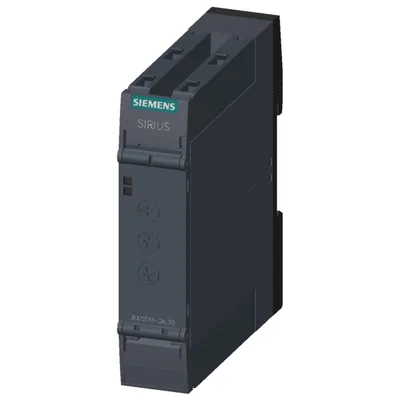

Siemens 3UG5533-2AL30

analog monitoring relay voltage monitoring from 20 to 275 V AC/DC overshoot and undershoot with internal power supply 24 to 240 V DC and AC 50 to 60 Hz ON delay and tripping delay 0.1 .. 30 s 1 changeover contact spring-loaded terminal

SiemensMFR # 3UG5533-2AL30SKU # YLSWCBW036YGBKN

product brand nameSIRIUS

product designationAnalog setting voltage monitoring relay

product type designation3UG5

product functionVoltage monitoring relay

power loss [W] maximum1.5 W

power loss [V∙A] maximum3 V·A

Have questions?Chat on WhatsApp

About This Product

Siemens 3UG5533-2AL30

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationAnalog setting voltage monitoring relay

design of the productmonitoring of undervoltage and overvoltage, internally powered without auxiliary voltage

product type designation3UG5

General technical data

product functionVoltage monitoring relay

power loss [W] maximum1.5 W

power loss [V∙A] maximum3 V·A

consumed active power1.5 W

with degree of pollution 2 rated value690 V

with degree of pollution 3 rated value690 V

degree of pollution3

for monitoringAC

of the control supply voltageAC/DC

surge voltage resistance rated value6 kV

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-6f = 4 ... 5,81 Hz, dmax = 15 mm; f = 5,81 ... 500 Hz, Amax = 20 m/s²; 10 cycles

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)06/01/2023

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8

Net Weight0.119 kg

Product Function

undervoltage detectionYes

overvoltage detectionYes

phase sequence recognitionNo

phase failure detectionNo

asymmetry detectionNo

voltage monitoringYes

current monitoringNo

overvoltage detection 1 phaseYes

overvoltage detection 3 phaseNo

overvoltage detection DCYes

undervoltage detection 1 phaseYes

undervoltage detection 3 phasesNo

undervoltage detection DCYes

voltage window recognition 1 phaseYes

voltage window recognition 3 phaseNo

voltage window recognition DCYes

auto-RESETYes

measurable line frequency initial value15 Hz

measurable line frequency full-scale value500 Hz

Control circuit/ Control

at 50 Hz rated value24 ... 240 V

at 60 Hz rated value24 ... 240 V

control supply voltage at DC rated value24 ... 240 V

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

initial value0.85

full-scale value1.1

starting time after the control supply voltage has been applied1 300 ms

Measuring circuit

measurable line frequency15 ... 500 Hz

measurable voltage at AC20 ... 275 V

with lower or upper limit violation0.5 ... 30 s

response time maximum500 ms

relative temperature-related measurement deviation0.1 %

Precision

relative metering precision20 %

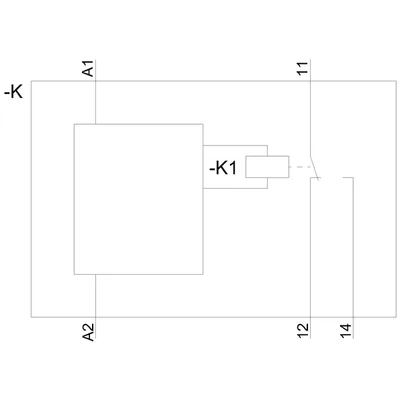

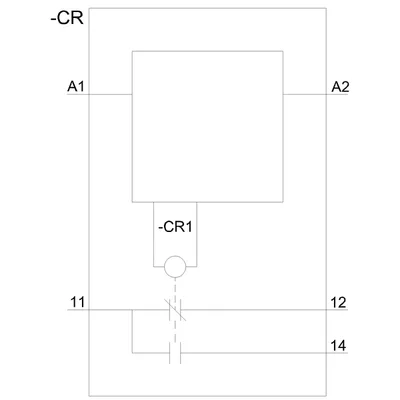

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

number of CO contacts delayed switching1

operating frequency with 3RT2 contactor maximum5 000 1/h

Main circuit

number of poles for main current circuit1

at AC at 60 Hz rated value24 ... 240 V

at DC rated value24 ... 240 V

ampacity of the output relay at AC-15 at 400 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0.2 A

at 250 V0.1 A

operational current at 17 V minimum5 mA

continuous current of the DIAZED fuse link of the output relay6 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationgalvanic isolation

between input and outputYes

between the voltage supply and other circuitsYes

Safety related data

product function suitable for safety functionNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0.5 ... 4 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²)

finely stranded without core end processing0.5 ... 4 mm²

for AWG cables solid1x (20 ... 12)

for AWG cables stranded20 ... 12

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

finely stranded without core end processing0.5 ... 4 mm²

solid20 ... 12

stranded20 ... 12

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting

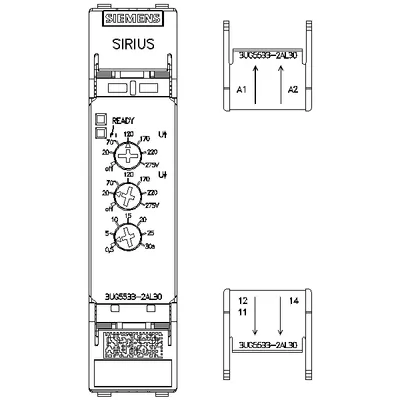

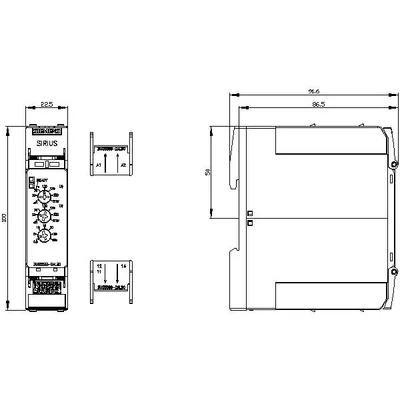

height100 mm

width22.5 mm

depth90 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

Accessories 6

Genuine accessories that can be used with the Siemens 3UG5533-2AL30 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1122-1BA00	Aksesuar · Removable terminals
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1440-1AA00	Aksesuar · Further accessories
3ZY1450-1AB00	Aksesuar · Further accessories
