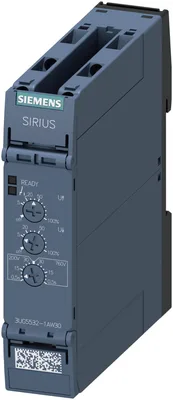

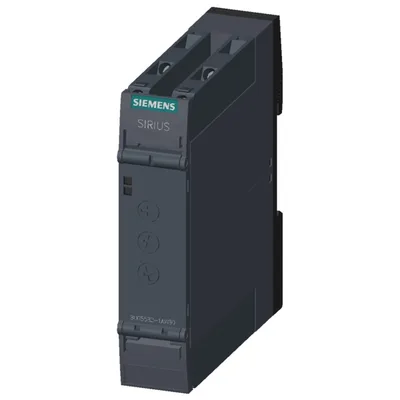

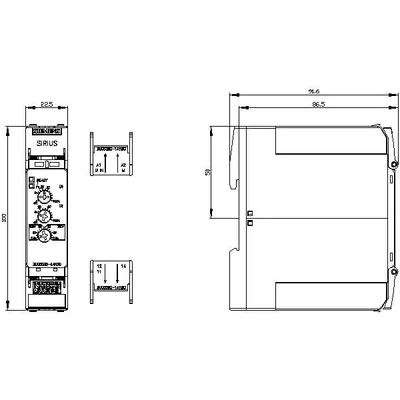

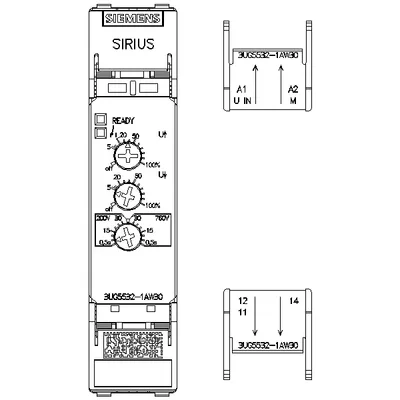

Siemens 3UG5532-1AW30

analog monitoring relay voltage monitoring from 10 to 690 V AC/DC overshoot and undershoot supply voltage 24 ... 240 V AC/DC, 50 .. 60 Hz tripping delay 0.5-30 s 1 changeover contact screw terminal

SiemensMFR # 3UG5532-1AW30SKU # YLSLSDNUKGZSOA

product brand nameSIRIUS

product designationAnalog setting voltage monitoring relay

product type designation3UG5

product functionVoltage monitoring relay

power loss [W] maximum1.5 W

power loss [V∙A] maximum3 V·A
