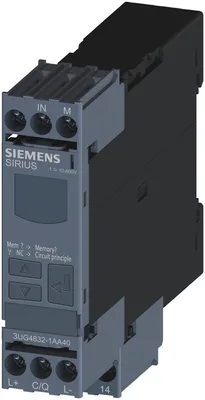

Siemens 3UG4832-1AA40

!!! product phase-out !!! the preferred successor is 3UG5842-1AA40 digital monitoring relay voltage monitoring, 22.5 mm for IO-Link 10...600 V AC/DC overvoltage and undervoltage hysteresis 0.1 to 300 V ON-delay time tripping delay time 1 changeover contact, screw terminal

SiemensMFR # 3UG4832-1AA40SKU # CEY-8EF3B02DC3ED

product brand nameSIRIUS

product type designation3UG4

product functionVoltage monitoring relay

design of the displayLCD

consumed active power2 W

with degree of pollution 2 rated value690 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3UG4832-1AA40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationVoltage monitoring relay with digital setting

product type designation3UG4

General technical data

product functionVoltage monitoring relay

design of the displayLCD

consumed active power2 W

with degree of pollution 2 rated value690 V

degree of pollution2

for monitoringAC/DC

of the control supply voltageDC

surge voltage resistance rated value6 kV

between control and auxiliary circuit690 V

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g

mechanical service life (operating cycles) typical10 000 001

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight0.132 kg

Product Function

undervoltage detectionYes

overvoltage detectionYes

phase sequence recognitionNo

phase failure detectionNo

asymmetry detectionNo

voltage monitoringYes

current monitoringNo

overvoltage detection 1 phaseYes

overvoltage detection 3 phaseNo

overvoltage detection DCYes

undervoltage detection 1 phaseYes

undervoltage detection 3 phasesNo

undervoltage detection DCYes

voltage window recognition 1 phaseYes

voltage window recognition 3 phaseNo

voltage window recognition DCYes

adjustable open/closed-circuit current principleYes

external resetYes

auto-RESETYes

measurable line frequency initial value500 Hz

measurable line frequency full-scale value40 Hz

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0.75

full-scale value1.25

starting time after the control supply voltage has been applied1 000 ms

Measuring circuit

measurable line frequency500 ... 40 Hz

measurable voltage at AC10 ... 600 V

measurable voltage at DC10 ... 600 V

when starting0 ... 999.9 s

with lower or upper limit violation0 ... 999.9 s

response time maximum450 ms

accuracy of digital display+/-1 digit

relative temperature-related measurement deviation0.1 %

Precision

relative metering precision5 %

Communication/ Protocol

protocol is supported IO-Link protocolYes

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum10 ms

type of voltage supply via input/output link masterYes

of the address range of the inputs with cyclical transfer total4 byte

of the address range of the outputs with cyclical transfer total2 byte

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

number of CO contacts delayed switching1

operating frequency with 3RT2 contactor maximum5 000 1/h

Main circuit

number of poles for main current circuit1

at AC at 60 Hz rated value240 V

at DC rated value24 V

ampacity of the output relay at AC-15 at 400 V at 50/60 Hz3 A

ampacity of the semiconductor output in SIO mode200 mA

operational current at 17 V minimum10 mA

continuous current of the DIAZED fuse link of the output relay4 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

design of the electrical isolationProtective separation

between input and outputYes

between the voltage supply and other circuitsYes

Safety related data

product function suitable for safety functionNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionscrew terminal

solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)

finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)

for AWG cables solid2x (20 ... 14)

for AWG cables stranded2x (20 ... 14)

solid0.5 ... 4 mm²

finely stranded with core end processing0.5 ... 2.5 mm²

solid20 ... 14

stranded20 ... 14

tightening torque with screw-type terminals1.2 ... 0.8 N·m

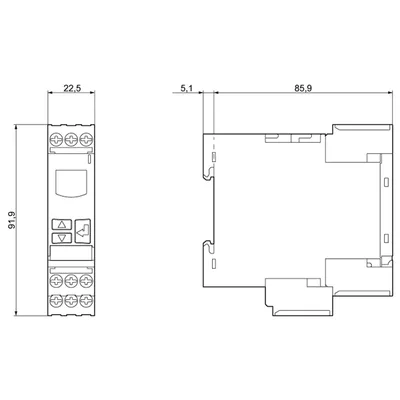

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height92 mm

width22.5 mm

depth91 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage85 ... -40 °C

during transport85 ... -40 °C
