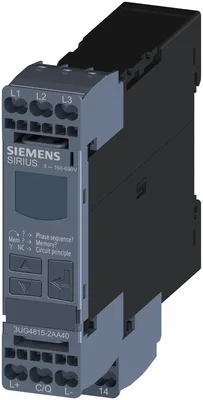

Siemens 3UG4815-2AA40

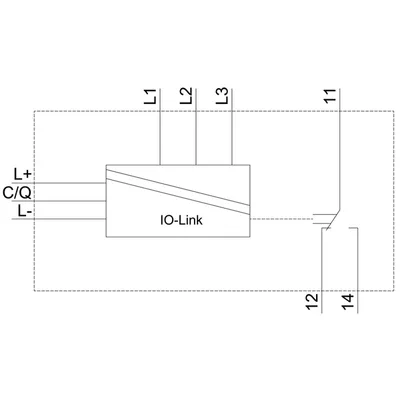

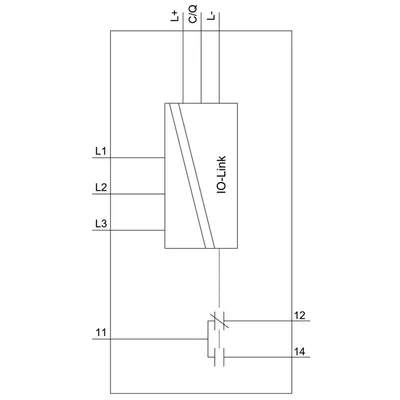

!!! product phase-out !!! the preferred successor is 3UG5816-2AA40 line monitoring IO-Link, 3x 160-690 V digital monitoring relay for 3-phase line voltage for IO-Link 50...60 Hz AC 3 x 160 to 690 V phase sequence, phase failure phase asymmetry undervoltage and overvoltage hysteresis 1-20 V line stabilization delay tripping delay time 1 changeover contact, spring-loaded connection system

SiemensMFR # 3UG4815-2AA40SKU # CEY-8EF3B038D9ED

product brand nameSIRIUS

design of the product5 functions

product type designation3UG4

product functionPhase monitoring relay

display version LEDNo

design of the displayLCD

Have questions?Chat on WhatsApp

About This Product

Siemens 3UG4815-2AA40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationNetwork monitoring relay with digital setting

design of the product5 functions

product type designation3UG4

General technical data

product functionPhase monitoring relay

display version LEDNo

design of the displayLCD

with degree of pollution 2 rated value690 V

degree of pollution2

for monitoringAC

surge voltage resistance rated value6 kV

shock resistance according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2 g

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

relative repeat accuracy1 %

Substance Prohibitance (day/month/year)05/01/2012

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight130.57 g

Product Function

undervoltage detectionYes

overvoltage detectionYes

phase sequence recognitionYes

phase failure detectionYes

asymmetry detectionYes

overcurrent detection 1 phaseNo

overvoltage detection 3 phaseYes

undercurrent detection 1 phaseNo

undervoltage detection 3 phasesYes

voltage window recognition 3 phaseYes

adjustable open/closed-circuit current principleYes

external resetYes

auto-RESETYes

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

Interfaces

design of the interface bluetoothNo

Measuring circuit

when starting1 000 s

with lower or upper limit violation1 000 s

response time maximum450 ms

accuracy of digital display+/-1 digit

Precision

relative metering precision5 %

Communication/ Protocol

protocol is supported IO-Link protocolYes

IO-Link transfer rateCOM2 (38,4 kBaud)

point-to-point cycle time between master and IO-Link device minimum10 ms

type of voltage supply via input/output link masterYes

of the address range of the inputs with cyclical transfer total4 byte

of the address range of the outputs with cyclical transfer total2 byte

Auxiliary circuit

number of NC contacts delayed switching0

number of NO contacts delayed switching0

for auxiliary contacts1

delayed switching1

operating frequency with 3RT2 contactor maximum5 000 1/h

Main circuit

number of poles for main current circuit3

at 250 V at 50/60 Hz3 A

at 400 V at 50/60 Hz3 A

at 24 V1 A

at 125 V0 A

at 250 V0 A

ampacity of the semiconductor output in SIO mode200 mA

operational current at 17 V minimum20 mA

continuous current of the DIAZED fuse link of the output relay4 A

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

Galvanic isolation

between input and outputYes

between the voltage supply and other circuitsYes

Safety related data

product function suitable for safety functionNo

Electrical Safety

protection class IP on the front according to IEC 60529IP20

Connections/ Terminals

product component removable terminal for auxiliary and control circuitYes

type of electrical connectionspring-loaded terminals

solid2x (0.25 ... 1.5 mm²)

finely stranded with core end processing2 x (0.25 ... 1.5 mm²)

finely stranded without core end processing2x (0.25 ... 1.5 mm²)

for AWG cables solid2x (24 ... 16)

for AWG cables stranded2x (24 ... 16)

solid0.25 ... 1.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.25 ... 1.5 mm²

solid24 ... 16

stranded24 ... 16

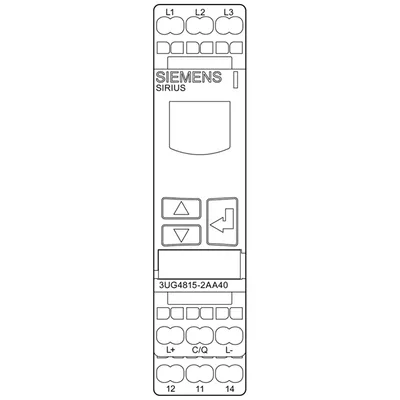

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height103 mm

width22.5 mm

depth91 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C
